Lasers
OBIS LS/LX
The original smart laser platform, offering plug-and-play simplicity with over 30 wavelengths from the UV to the near-IR plus optional fiber delivery.

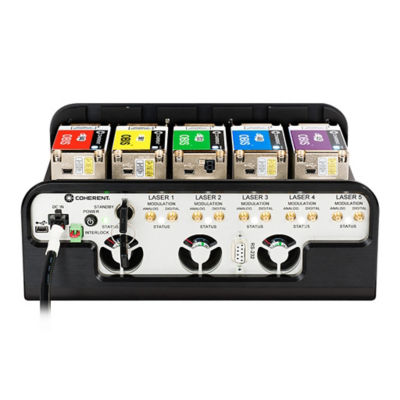

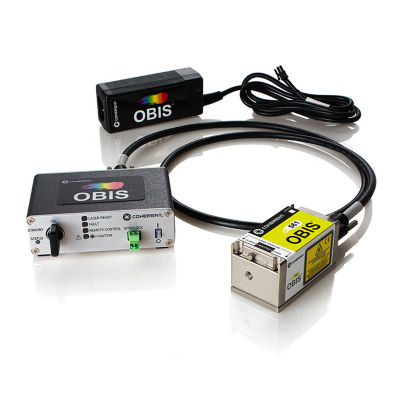

OBIS LS/LX lasers ensure an optimum performance in the most demanding clinical and research applications. They provide commonality across the spectrum in dimensions, beam, and interface. The compact package includes integrated control electronics. They support analog, digital, and mixed modulation modes. Accessories include a CDRH controller and the Galaxy beam combiner.
OBIS LS/LX Summary
Lower-quality lasers in your flow cytometer leads to data points that are scattered and difficult to identify, costing everyone time and money with additional tests. Lasers with the best signal-to-noise ratio produce not only higher-quality data, but also enable the user to work with higher dynamic range, more finesse, and less noise. OBIS LX lasers have <0.05% RMS Noise, enabling your signal data to stand out with superior clarity. Choose from over 50 different models based on wavelength, power, fiber-pigtailing, and modulation options. Identical format enables hot swapping by OEMs and end users.
Product Specifications
OBIS Series Name |
Wavelength (nm) |
Key Features |
Beam Characteristics |
Typical Applications |
Linewidth |
||||
OBIS LX SF NEW! With Fiber Pigtail versions. |
405, 633, 660, 785 |
High Beam Quality Power up to 50 mW |
< 0.3 pm for 405 nm and 633 nm < 1.5 pm for 660 nm < 0.7 pm for 785 nm |
HeNe (Helium Neon) Holography Medical Imaging and Instrumentation Metrology Semiconductor Inspection Particle Characterization Industrial Gas Sensing |
Product Specifications
OBIS Series Name |
Wavelength (nm) |
Key Features |
Beam Characteristics |
Typical Applications |
|
Beam Quality |
Modulation |
||||
OBIS LS NEW! |
488, 505, 514, 532, 552, 561, 594 |
Exceptional Beam Quality Power up to 200 mW |
M² ≤ 1.1 |
50 KHz Digital 100 KHz Analog |
|
OBIS LX NEW! |

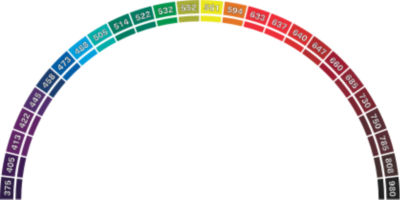

375, 405, 413, 422, 445, 458, 473, 488, 505, 514, 522, 633, 637, 640, 647, 660, 685, 690, 730, 750, 785, 808, 980 |
High Beam Quality Power up to 365 mW |
M² ≤ 1.2 |
150 MHz Digital 500 KHz Analog |
|
OBIS LS FP NEW! |
488, 514, 532, 552, 561, 594 |
Single Mode Polarization Maintaining Fiber with FC/APC connector Power up to 150 mW |
M² ≤ 1.1 Fiber with FC/APC |
50 KHz Digital 100 KHz Analog |
|

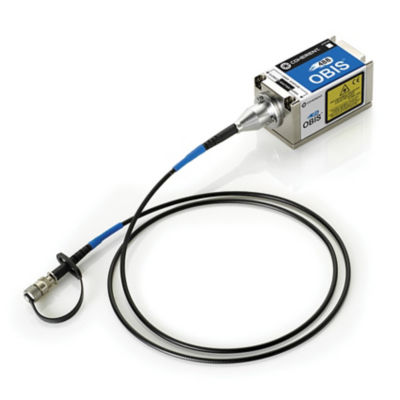

OBIS LX FP NEW! |
375, 405, 413, 445, 458, 473, 488, 505, 514, 522, 633, 637, 640, 647, 660, 685, 690, 730, 785 |
Single Mode Polarization Maintaining Fiber with FC/APC connector Power up to 200 mW |
M² ≤ 1.1 Fiber with FC/APC |
150 MHz Digital 500 KHz Analog |
|
OBIS Lasers for Galaxy Beam Combiner, Fiber Pigtailed |
405, 445, 458, 473, 488, 514, 532, 552, 561, 594, 640 |
Single Mode Polarization Maintaining Fiber with FC/PC connector with Ultra-Flat Polish Power up to 200 mW |
M² ≤ 1.1 Fiber with FC/PC (FC/UFC) |
See above for LX and LS |
|
