UV Laser Systems
Take full advantage of our unique high-energy UV lasers with complete optical systems configured for LTPS, LLO, LIFT, PLD, LA-ICP-MS, and more.
- Vertical Integration Avoid risk and enjoy 24/7 operation with our long-lived lasers, optics and mechanics.
- Proven Industrial Tools Rely on the same enabling technology that makes high-performance mobile displays.
- UV Wavelength Options Choose from 193, 248, and 308 nm systems, plus custom 157 or 351 nm options.
Bringing Our Expertise to UV Laser Process
With 50 years of experience in UV lasers and optical systems, we understand the challenges of managing, shaping, and focusing excimer beams. And thanks to vertical integration, we design, manufacture, and assemble complete systems to the most exacting standards.
UV Laser Family of Products

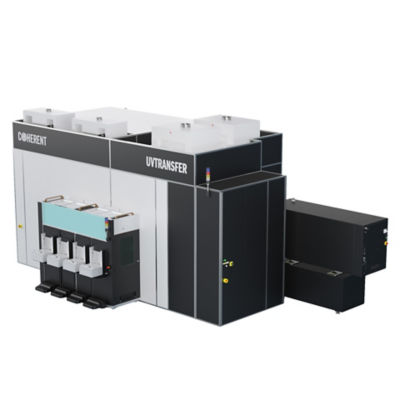

A unique 3-in-1 system for MicroLED Display Manufacturing, enabling Laser Lift-Off (LLO), Laser-Induced Forward Transfer (LIFT), and Repair/Trimming, all with high throughput. |
3-in-1 Value - Single system for all three processes. | High Throughput - High energy excimer laser supports large field sizes. | Future-Proof - Handles die sizes from 50 down to 5 µm. |
LineBeam UV laser systems enable mass manufacturing of low-temperature polysilicon (LTPS) backplanes on large substrate panels with the highest yield. |
Long Line Beam - Up to 1500 mm. | High Homogeneity - 0.6 % (2σ). | Large Focal Depth - Up to ±150 µm. |

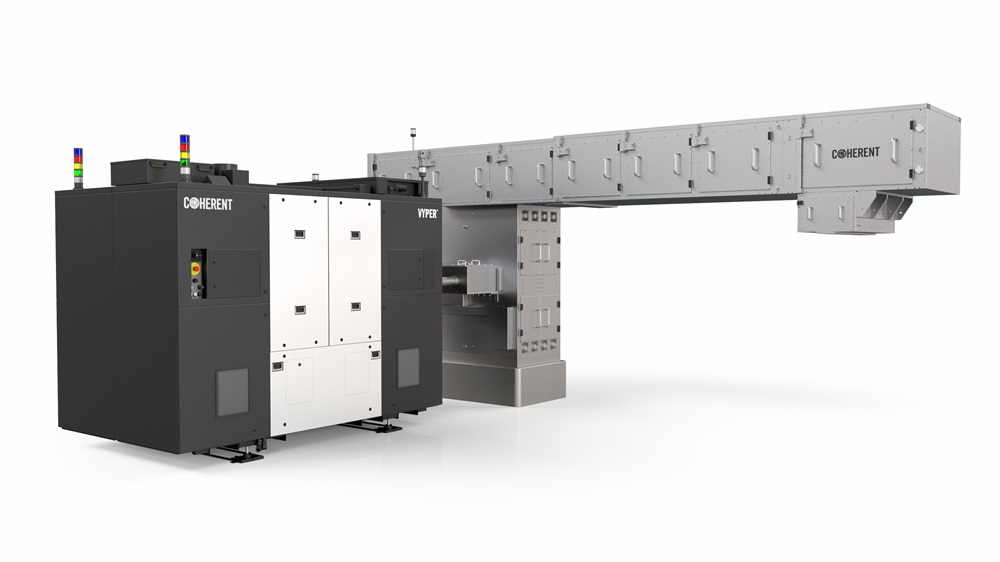

UVblade excimer lasers offer a cost-effective solution for LLO with high optical efficiency and broad scalability in line lengths and energy density. |
High Homogeneity - 1.8 % | Large Focal Depth - Up to ±200 µm. | High Pulse Energy - Up to 2000 mJ. |
Get superior optomechanical tools for excimer beam delivery optimized for the unique combination of high pulse energy, short UV wavelengths, and high power. |
Homogenize a Beam - <± 5% fluence variation. | Variable Attenuation - Precise energy control. | Mask Image Projection - 4-10X demagnification. |

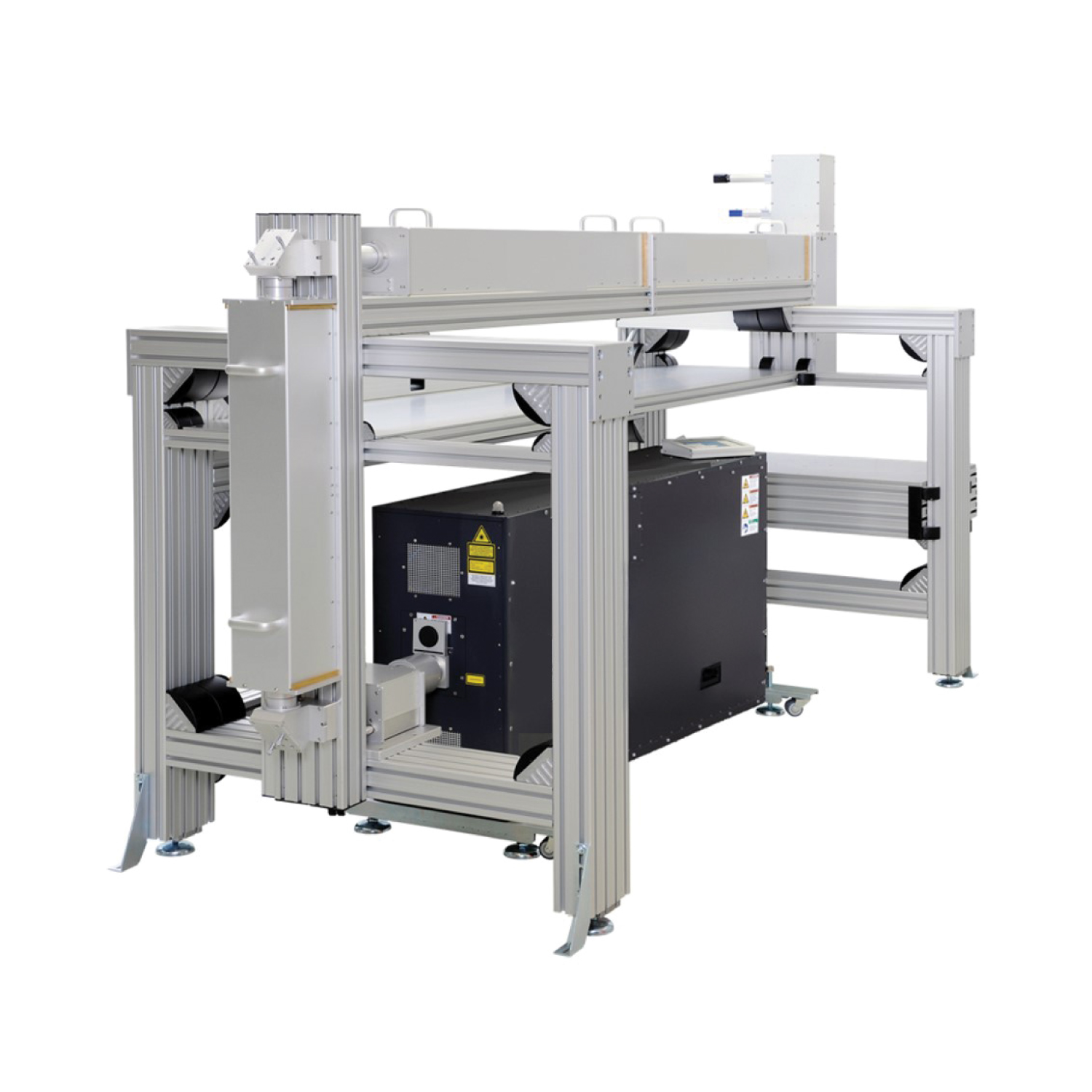

VarioLas excimer UV lasers are based on the powerful COMPex excimer laser for high quality UV microprocessing with a line beam or square beam field shape. |
High Energy Density - Up to 7.5 J/cm². | Versatile and Adjustable - Line or square profile. | High Optical Resolution - ≥ 5 µm. |
GeoLasHD excimer UV systems combine 193 nm pulses, a high-performance polarized microscope, and HD camera observation for laser ablation ICP-MS. |
High Optical Resolution - 1 µm. | Variable Sample Spot - 2 - 160 µm. | High Pulse Stability - 1 % (rms) . |
Featured Blog
What are MicroLED displays?
MicroLEDs (µLEDs) are a relatively new technology that produces brilliant, high-resolution displays. In the next five years, µLED displays will grow to be a $10B-plus market — and lasers play a critical role in enabling their production.
