Laser Power and Energy Meters

Measure laser power and energy with ease and precision over a huge range of wavelengths, power levels, and pulse energies.


  • Meter Choices Tackle any application including field, laboratory, and production environments.
  • Fast Sampling Analyze pulse shape to optimize materials processing applications.
  • Local Calibration Obtain calibration from labs in Europe, North America and Asia.
Laser Power and Energy Meters

Meters to fit any need

Coherent has the right meter for you, whether you're performing high accuracy, multi-parameter data acquisition over many hours in the lab, or making a quick laser adjustment in the field.

Power & Energy Meter Product Family



Model



Measurement Type



Sensor Compatibility

Interface Options

Display Type

LabMax Touch ➝

A full-featured laser power and energy measurement instrument system that makes extensive data acquisition and analysis capabilities easy to access through an intuitive, touchscreen interface.



Power & energy

  • Fast thermoelectric
  • Thermopile
  • Semiconductor
  • Pulse Energy
  • USB
  • RS-232
  • Ethernet

Graphical Touch Screen LCD

LabMax Touch Pro ➝

The 'Pro' model increases sample rate to 1 MHz (with PowerMax-Pro sensors) and adds additional pulse analysis functions on top of the LabMax Touch base features.



  • Fast thermoelectric
  • Thermopile
  • Semiconductor
  • Pulse Energy
  • USB
  • RS-232
  • Ethernet

Graphical Touch Screen LCD

LabMax TOP ➝

A full featured instrument with a wealth of display, interface, and data logging options, plus compatibility with virtually every Coherent sensor.



Power & energy

  • Thermopile
  • Semiconductor
  • Pulse Energy

USB & RS-232

Graphical LCD

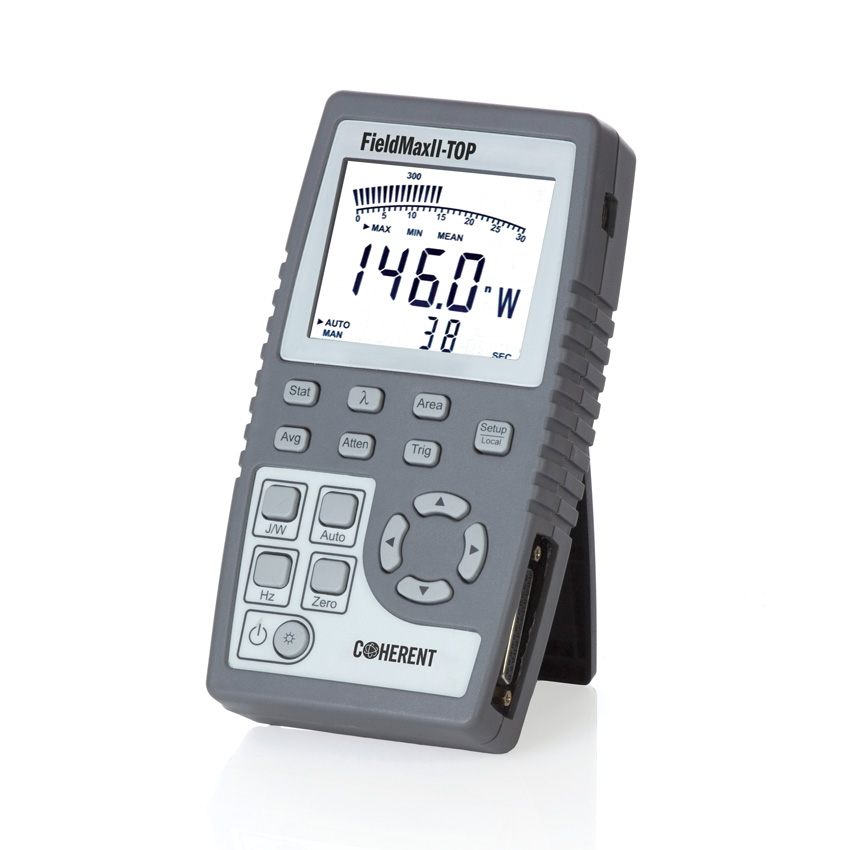

FieldMax II TOP ➝

A portable power & energy meter that's long on features, including data logging, statistics, and compatibility with a broad range of thermopile, optical and pulse energy sensors.



  • Thermopile
  • Semiconductor
  • Pulse Energy

USB

Fixed Segment LCD

LabMax-Pro SSIM ➝

High-performance meter which uses a connected PC for instrument control and display, and can sample at 20 kHz for monitoring of modulated and long-pulse lasers.



  • Fast thermoelectric
  • Thermopile
  • Semiconductor
  • Pulse Energy

USB & RS-232

LabMax TO ➝

A full featured instrument with a wealth of display, interface, and data logging options, plus compatibility with virtually every Coherent power sensor.



Power

  • Thermopile
  • Semiconductor

USB & RS-232

Graphical LCD

FieldMax II TO ➝

A portable power meter that's long on features, including data logging, statistics, and compatibility with a broad range of thermopile and optical sensors.



  • Thermopile
  • Semiconductor

USB

Fixed Segment LCD

FieldMate ➝

Take fast, accurate laser power measurement with you wherever you go, and use the analog needle display for easy laser tuning.



  • Thermopile
  • Semiconductor

Fixed Segment LCD and analog tuning needle

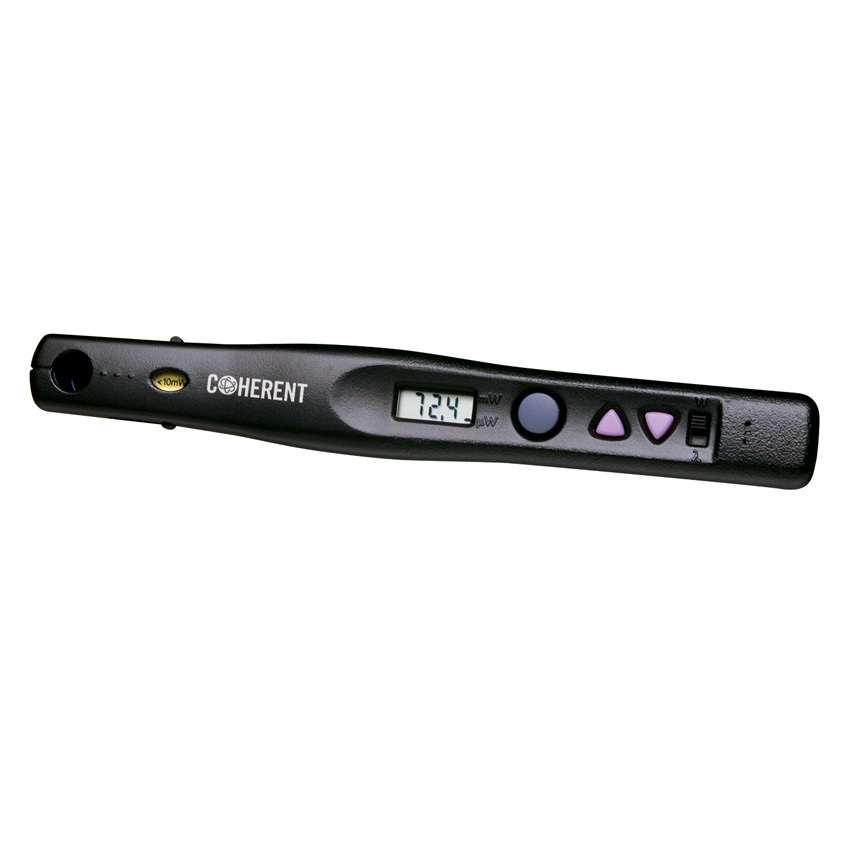

LaserCheck ➝

Handheld, economical, battery operated meter for quick and easy measurement of low power lasers.



  • Semiconductor

Fixed Segment LCD

Video Spotlight

Laser Power & Energy Measurement at Your Fingertips

LabMax Touch is a full-featured laser power and energy measurement system that offers high sample rates (up to 1 Million samples per second), best-in-class analytics, and an industrial design featuring one of the largest touchscreens in its class. LabMax Touch delivers fast, easy measurement of energy, pulse width, and pulse shape, and is compatible with all sensor types including Pyroelectric, Thermopile, Fast Thermoelectric, and optical sensors.
