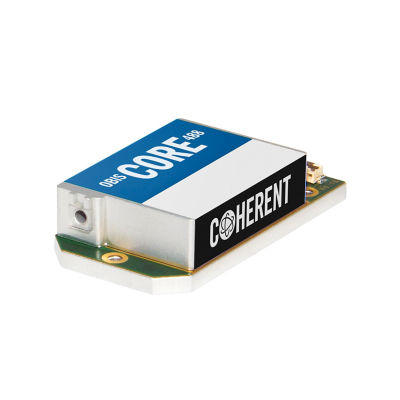

OBIS CORE LS


Tiny low-noise lasers delivering a high-quality beam and providing analog and digital modulation to 1 kHz at several life sciences wavelengths from 488 nm to 594 nm.

OBIS CORE LS support two life sciences trends. Smaller more economical instruments, including the new generation of benchtop flow cytometers and novel point of care analyzers. Plus the increasing use of multiple laser wavelengths in a single instrument.


OBIS CORE LS Overview

Get high performance in a tiny package with a (>90 %) circular beam and TEM₀₀ output mode. RMS noise (up to 20 MHz) is only ≤0.25 %. Pointing stability is <5 µrad/°C.



Product Specifications

Model Name

Wavelength (nm)

Available Power (mW)

OBIS CORE 488LS

488

20 - 150

OBIS CORE 505LS

505

30 - 100

OBIS CORE 514LS

514

20 - 150

OBIS CORE 532LS

532

20 - 150

OBIS CORE 552LS

552

20 - 150

OBIS CORE 561LS

561

20 - 150

OBIS CORE 594LS

594

20 - 100
