Beam Displacer
Build fiberoptic multiplexing devices - including circulators, WSS, and interleavers - plus high-power isolators for fiber lasers - with our birefringent optics.

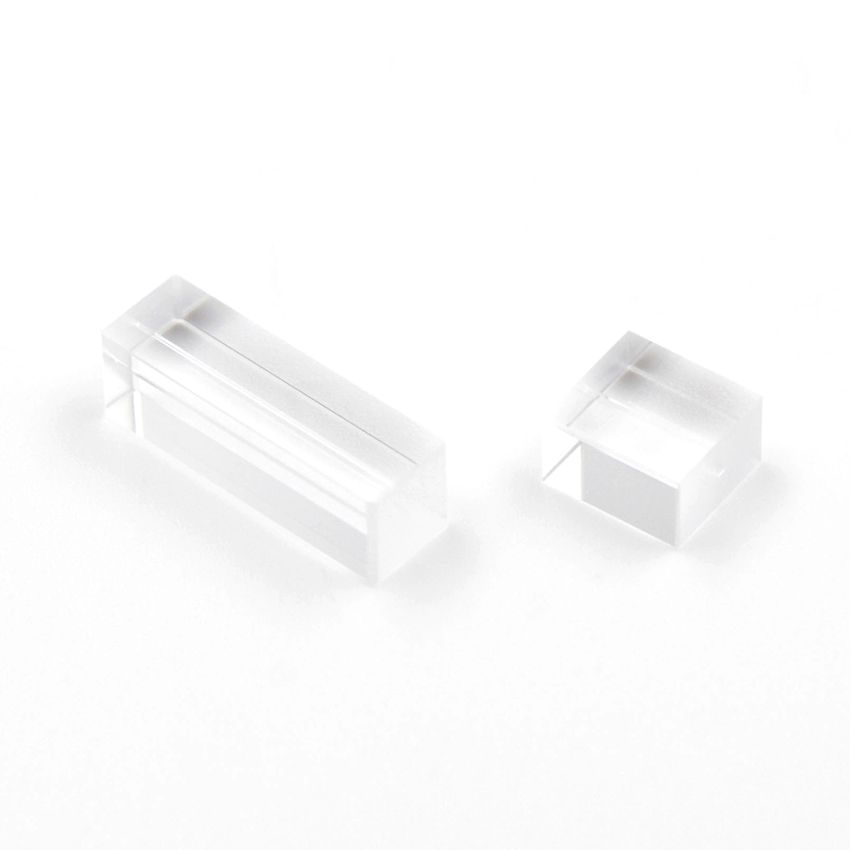

Our compact YVO4 beam displacers exhibit high birefringence at 0° incidence, plus high transmission and good thermal and mechanical properties, making them ideal for use as polarization-based beam separators over wavelengths from 500 nm to 5 μm.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
Beam Displacer Capabilities
Specify dimensions, operating wavelength, coatings, and optical axis orientation to get the beam separation required for your application.
Typical Beam Displacer Specifications |
|
Typical Dimensions |
2 x 2 x 7 mm 2.6 x 2.6 x 10 mm |
Optical Axis Orientation Tolerance |
±0.1° |
Flatness |
λ/10 at 632.8 nm |
Wavefront Distortion |
λ/4 at 632.8 nm |
Surface Quality |
10-5 |
Clear Aperture |
>90% |
AR Coating |
R<0.20% at center wavelength ±40 nm |
