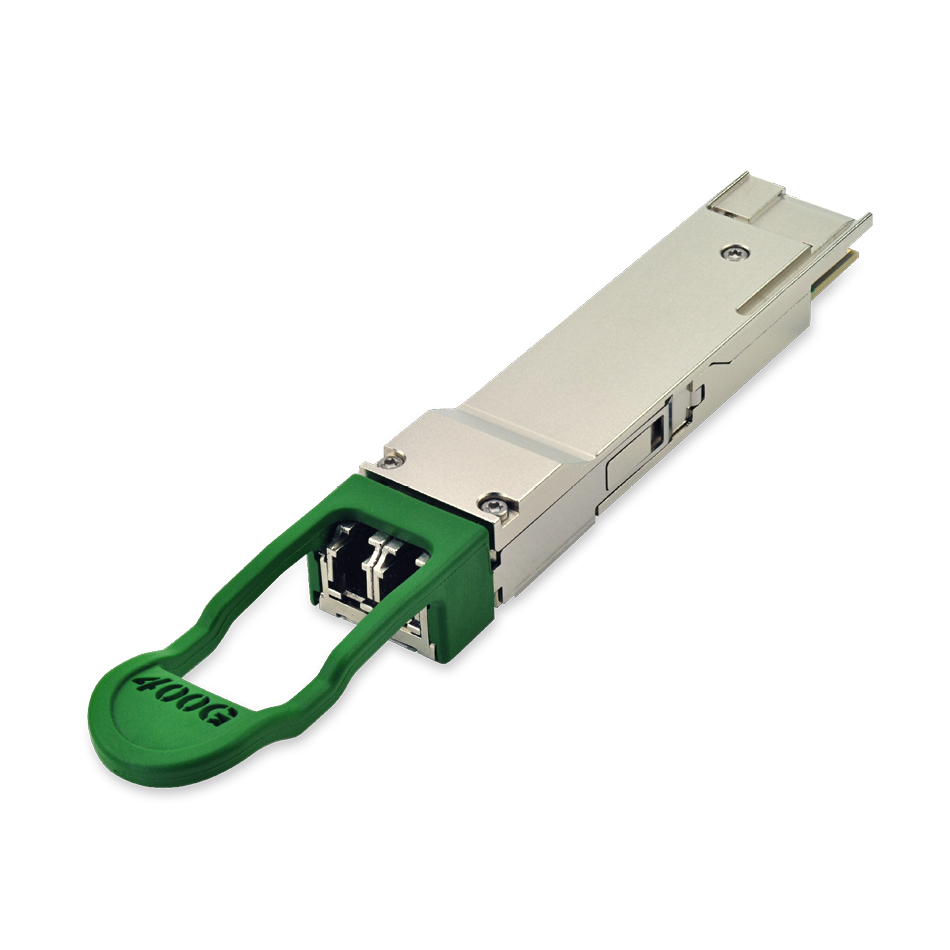

400G-FR4 Gen 3 QSFP-DD Optical Transceiver
FTCD4313E3PxL FR4 QSFP-DD transceiver modules are compliant with the QSFP-DD MSA, QSFP28 MSA, IEEE P802.3cu and portions of P802.3bs. Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Application Note AN-20xx. The optical transceiver is RoHS compliant as described in Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTCD4313E3PCL |
|---|---|
| Operating Distance | 2 km |
| Data Transfer Rate | 400G |
| Form Factor | QSFP-DD |
| Receiver | PIN |
| Low End Case Temperature (ºC) | 0 °C |
| High End Case Temperature (ºC) | 70 °C |
| Transmitter | CWDM |
| Connector | LC |
| Media Type | Duplex SMF |
| Data Rate | 425 Gb/s |
| Protocol | Gigabit Ethernet |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 1310nm Band |
