C-Polarizer
Build circulators, data terminal equipment (DTE), data communications equipment (DCE), interleavers, and other optical datacom/telecom components with these optics.

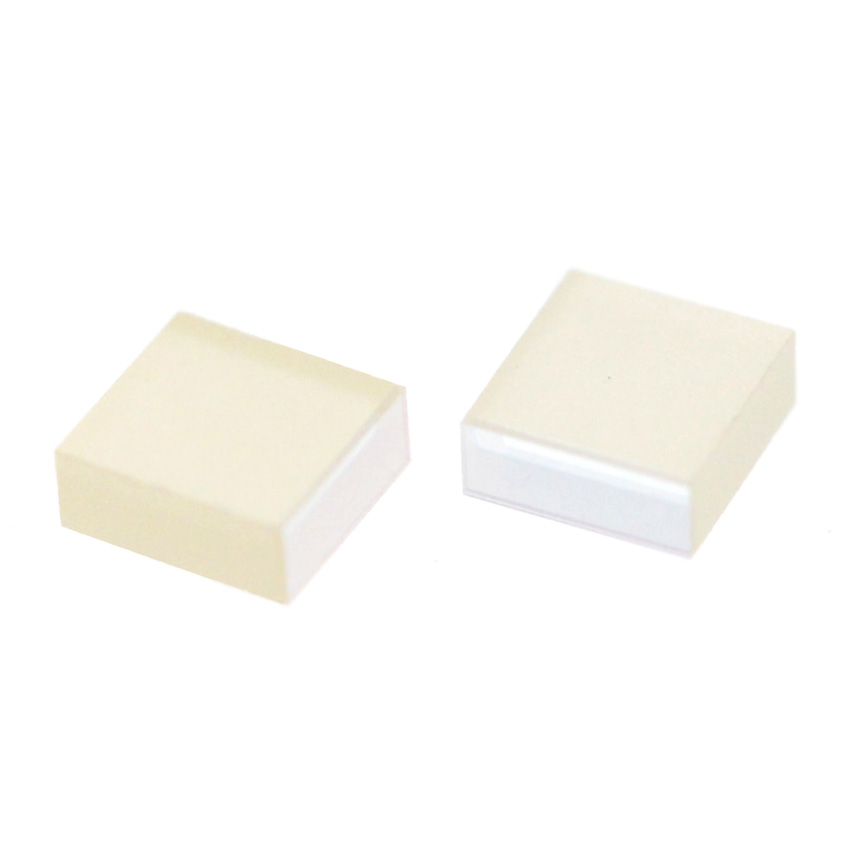

Coherent C-polarizers combine a birefringent YVO4 beam displacer and a λ/2 waveplate to provide a compact, monolithic way of separating or combining polarization-multiplexed optical signals with high polarization purity in an epoxy-free optical path.
C-Polarizer Capabilities
Specify wavelengths, beam separations, polarization states, and dimensions to get the right C-polarizer for your specific application.
Typical C-Polarizer Specifications |
|
Material |
YVO4 & Crystal Quartz |
Typical Dimension |
2.6 x 2.6 x 7 mm |
Beam Deviation |
3 arc min |
Flatness |
λ/10 at 632.8 nm |
Extinction Ratio |
> 1000:1 |
Surface Quality |
20-10 |
Wavelength Range |
λc ± 20 nm |
AR Coating |
R<0.20% at λc ± 40 nm, λc = 1310 nm or 1550 nm |
