10G VCSEL Single Chips

Get a 850 nm circular symmetric beam with a single longitudinal mode and low divergence that can be efficiently coupled into 50/125 µm and 62.5/125 µm MM fibers.

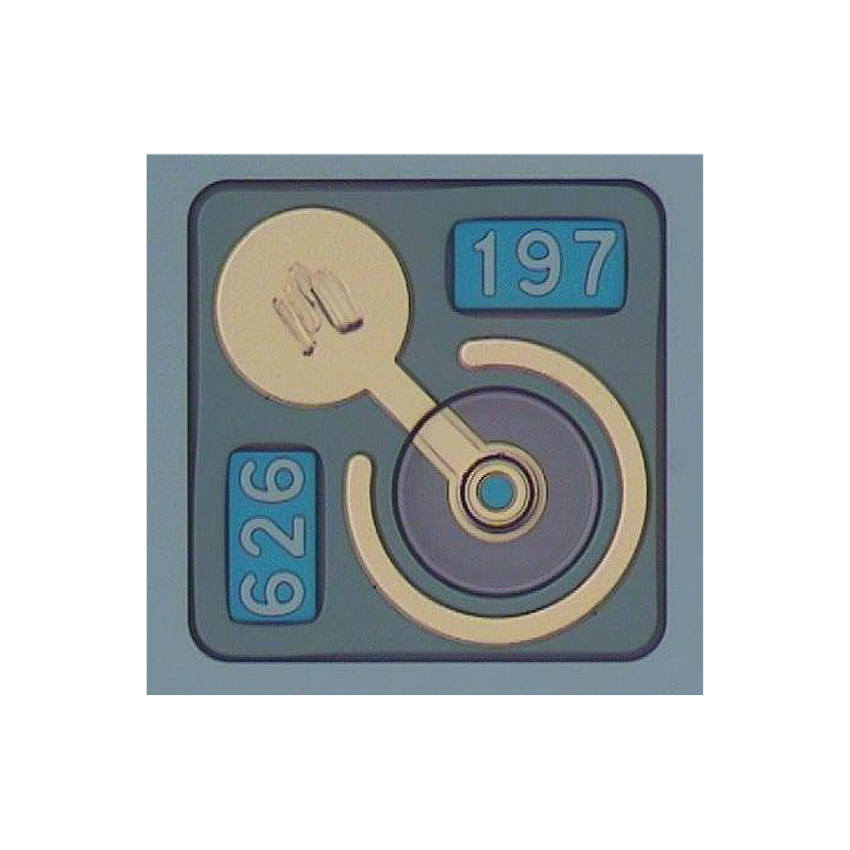

Our high-speed 850 nm VCSEL chip operates in multiple transverse modes and meets stringent specifications for high-speed datacom. This high-performance, high-reliability device is engineered with low electrical parasitics for data rates up to 10 Gbps.

850 nm 10 Gbps Multimode VCSEL Chips

Use these for fiber communication links, for AOC, HDMI, or consumer applications. Available diced on a metal lead-frame, on UV tape (grip ring), or in low-volume gel packs.

Key Features

  • Low threshold and operation current

  • High reliability

  • Low electrical parasitics

  • Data rates up to 10 Gb/s

  • Backside common cathode and topside anode configuration
