Pockels Cells - Electro-Optic Q-Switches
Get large apertures, high energy/power handling, very high contrast ratio, and fast risetimes with our comprehensive range of standard and custom EO Q-Switches.
Using unique crystal growth, fabrication, and polishing methods, Coherent manufactures a full range of Pockels cells in materials including BBO, KDP, KD*P. Ideal for intra- and extra-cavity use in materials processing, medical, and aesthetic laser applications.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.

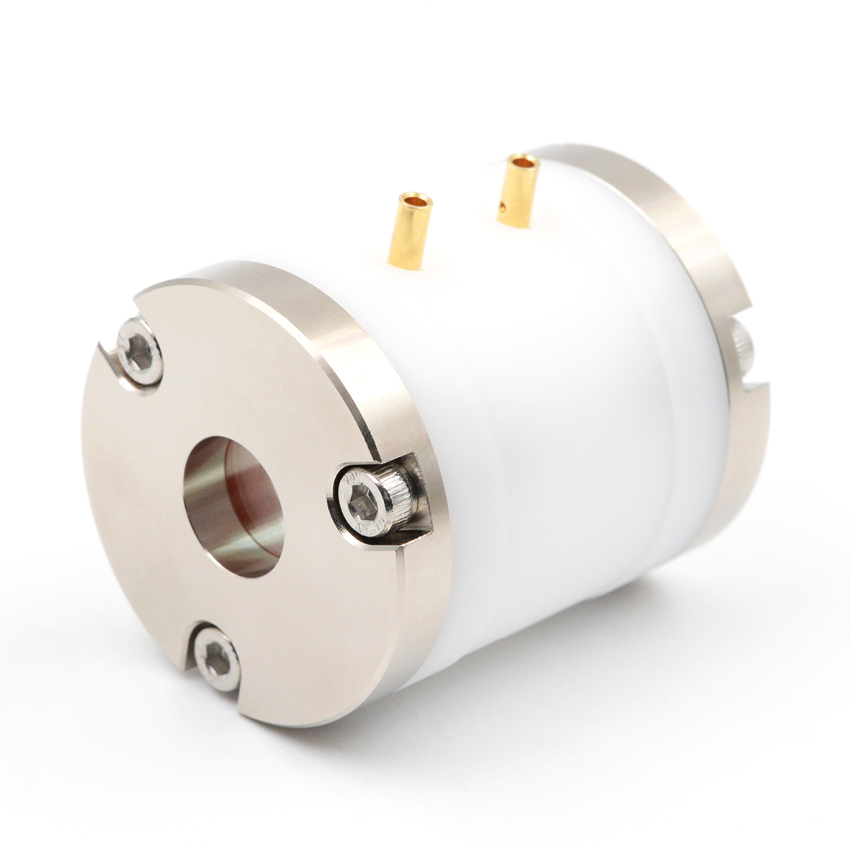

Dual-Stage BBO Pockels Cell – Key Specifications
Partner with Coherent for standard and custom Pockels Cells for your OEM needs, featuring different apertures, mechanical dimensions, and switching characteristics.
Operating Wavelength (nm) |
Clear Aperture (mm) |
Format |
Transmission (%) |
λ/4 voltage (kV) |
Intrinsic Contrast Ratio (ICR) |
Voltage Contrast Ratio (VCR) |
1020-1040 |
3.5 |
Dual-Stage (two crystals) |
>98.3 |
<2.3 |
1000:1 |
1000:1 |
