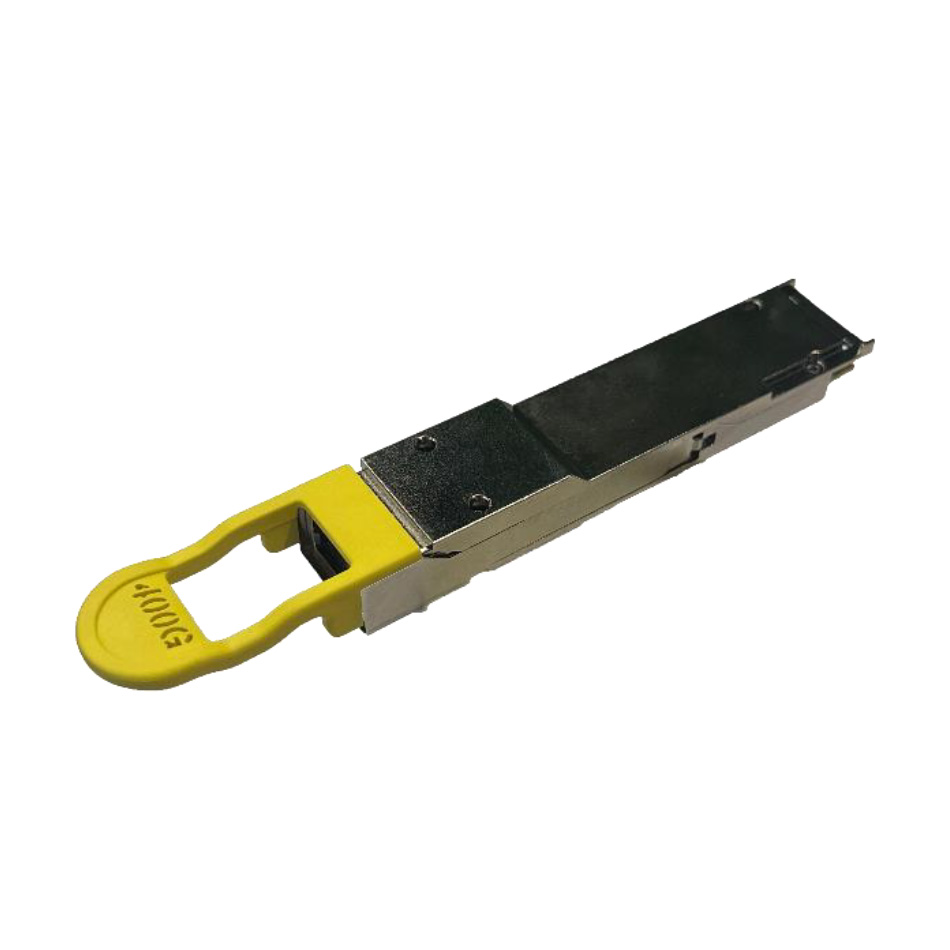

800G-DR8+ OSFP Optical Transceiver
These transceivers are compliant with the OSFP MSA, IEEE 802.3bs and IEEE P802.3ck Digital diagnostic functions are available via the I2C interface, as specified by the OSFP MSA. The transceiver is RoHS-6 compliant per Directive 2011/65/EU4 and Finisar Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTCD4528E1PCM |
|---|---|
| Operating Distance | 500 m |
| Data Transfer Rate | 400G |
| Form Factor | QSFP112 |
| Wavelength (by band type) | 1310 Band |
| Receiver | PIN |
| Low End Case Temperature (ºC) | 0 ˚C |
| High End Case Temperature (ºC) | 70 ˚C |
| Transmitter | EML |
| Connector | MPO12 |
| Media Type | Single SMF |
| Data Rate | 425 Gb/s |
| Protocol | Gigabit Ethernet |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 1310 nm |
