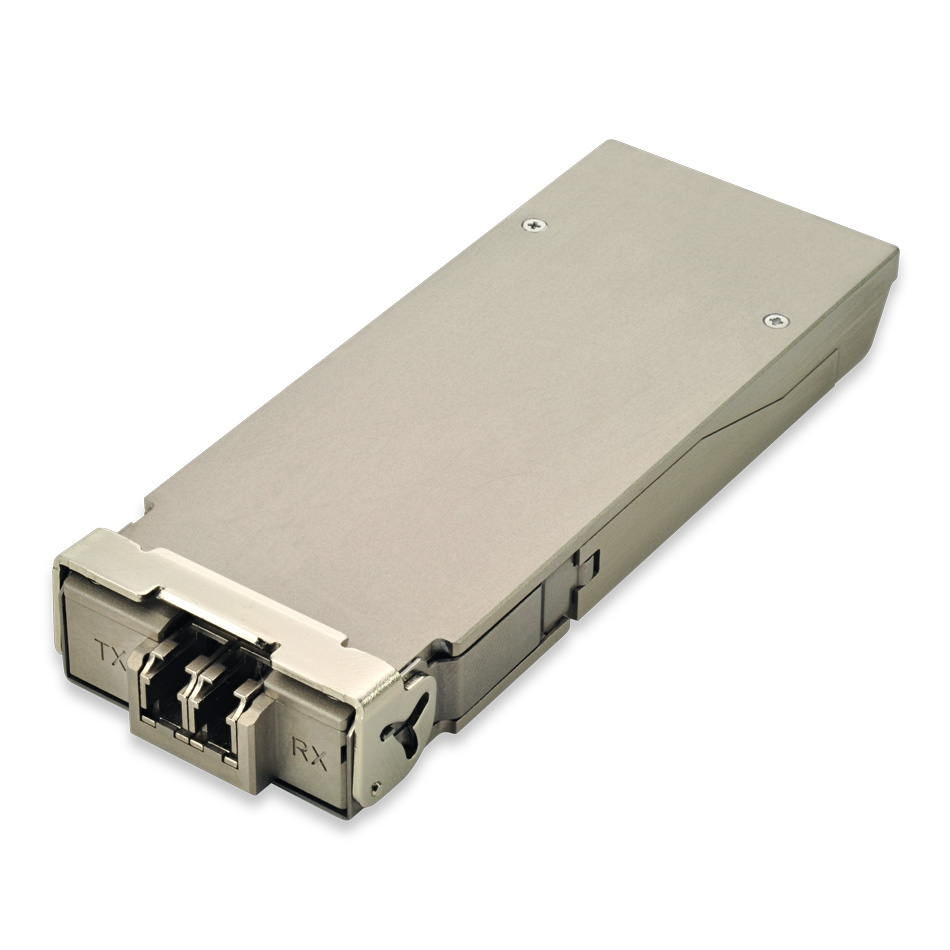

200G/100G CFP2 Digital Coherent Optics Transceiver Open ROADM
C-band tunable, Multi-rate, SD-FEC, 0°C to 70°C, LC receptacle.
On the host side, the module can accommodate a variety of signal types including 100GE, 200GE, 400GE, OTU4 and OTUCn (FlexO). On the line side the module supports 100G, 200G, 300G, and 400G interfaces with different modulation formats and forward error correction (FEC) codes. Multiple 100G clients can be multiplexed onto a single 200G, 300G, or 400G line side interface.
The transceiver module is compliant to the CFP MSA CFP2 Hardware Specification, with extensions specified in the OIF CFP2-DCO implementation agreement. The optical transceiver is RoHS compliant as described in Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTCC3311M1BCL-OR |
|---|---|
| Description | 200G/100G CFP2 Digital Coherent Optics Transceiver, C-band tunable, Multi-rate, SD-FEC, 0°C to 70°C, LC receptacle, Open ROADM |
| Operating Distance | 600 km |
| Data Transfer Rate | 200G |
| Form Factor | CFP2 |
| Wavelength (by band type) | C-Band DWDM Tunable |
| Transmitter Optical Output Power (dBm) | 0dBm |
| Receiver | coherent |
| Management Interface | MDIO |
| Low End Case Temperature (ºC) | 0 °C |
| High End Case Temperature (ºC) | 70 °C |
| Transmitter | Tunable DP-16QAM/8QAM/QPSK |
| Connector | LC |
| Media Type | Duplex SMF |
| Data Rate | 256 Gb/s |
| Diagnostics | digital |
