100G 4WDM eCWDM4 10km Optical Transceiver

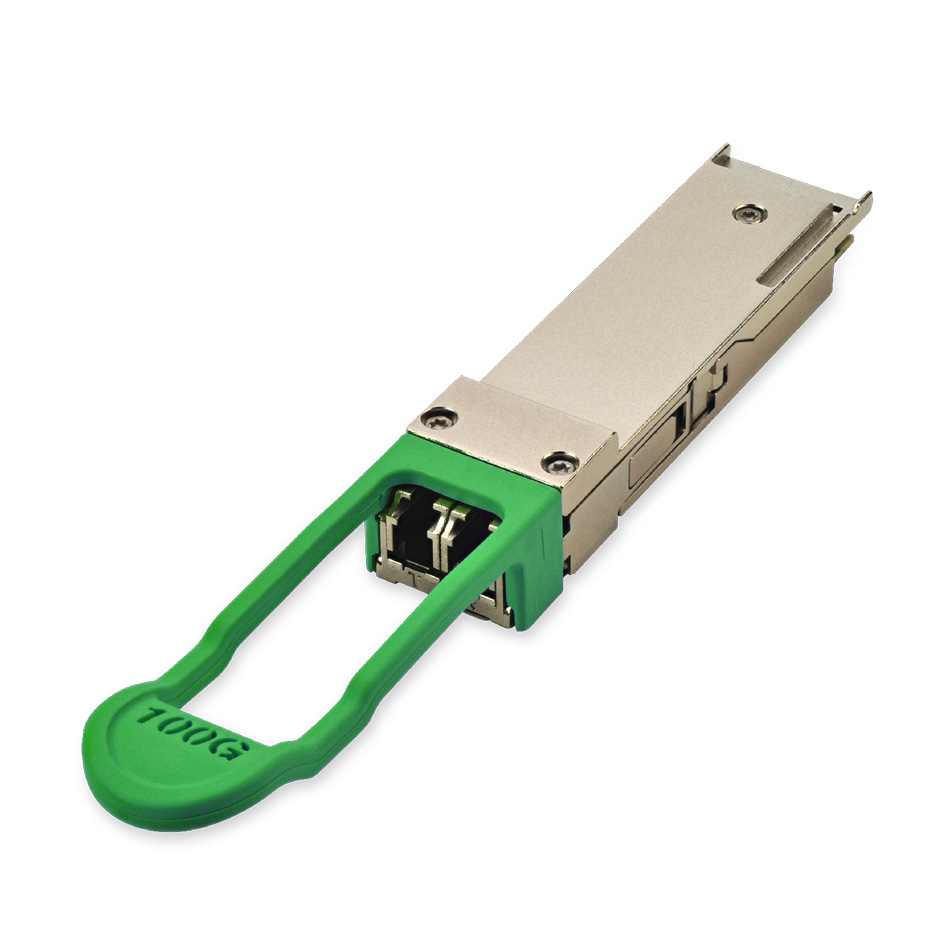

Product image of 100G 4WDM eCWDM4 10km Optical Transceiver

FTLC1155RGPL QSFP28 transceiver modules are compliant with the QSFP28 MSA, CWDM4 MSA, 4WDM MSA, and portions of IEEE P802.3bm CAUI-4. Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Application Notes AN-2153 and AN-2154. The optical transceiver is RoHS compliant as described in Application Note AN-2038. For details of our compliance standards, click here.

Parameter FTLC1157RGPL
Operating Distance 10 km
Data Rate 103.1 Gb/s
Data Transfer Rate 100G
Protocol Ethernet
Connector LC
Media Type Duplex SMF
Form Factor QSFP-DD
Voltage Supply (V) 3.3 V
Diagnostics Digital
High End Case Temperature (ºC) 70 °C
Wavelength (nm) 1310nm Band
Transmitter 4x CWDM DFB Laser
Receiver PIN
