Datasheet
Networking
100G Ethernet Compliant Wireless CPRI Compliant

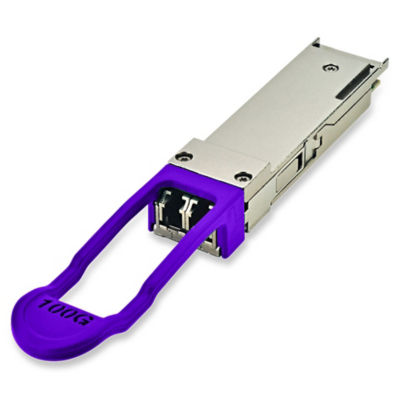

FTLC1155WGPLC QSFP28 are compliant with the QSFP28 MSA, CWDM4 MSA, 4WDM MSA, and portions of IEEE P802.3bm CAUI-4. Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Application Notes AN-2153 and AN-2154. The optical transceiver is RoHS compliant as described in Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLC1155WGPLC |
|---|---|
| Operating Distance | 10 km |
| Data Rate | 103.1 Gb/s |
| Data Transfer Rate | 100G |
| Protocol | Gigabit Ethernet CPRI |
| Connector | LC |
| Media Type | Duplex SMF |
| Form Factor | QSFP28 |
| Low End Case Temperature (ºC) | -20 °C |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| High End Case Temperature (ºC) | 85 °C |
| Wavelength (nm) | 1310nm Band |
| Transmitter | 4x CWDM DFB Laser |
| Receiver | PIN |
