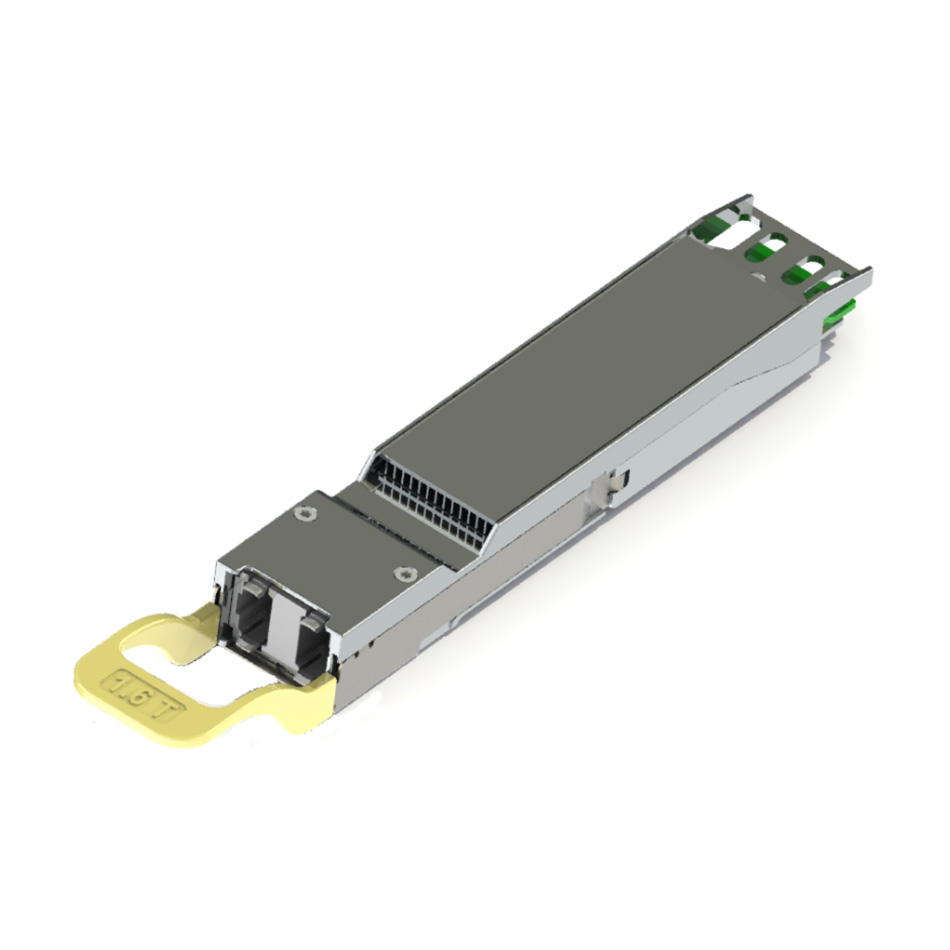

1.6T DR-8 OFSP transceiver module, designed for use in Ethernet/InfiniBand links up to 2 km.
These 1.6T transceivers are compliant with the OSFP MSA with dual MPO-12 interface, 8x200G PAM4 IEEE P802.3dj and OIF CEI-224G-LR host and line interfaces. A half populated OSFP 800G-DR4 in single MPO-12 is available for its splitting application. The transceiver is RoHS-6 compliant per Directive 2011/65/EU4 and Finisar Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTCF2519E1PCM-2 |
|---|---|
| Operating Distance | 2km |
| Data Transfer Rate | 1.6T |
| Form Factor | OSFP |
| Low End Case Temperature (ºC) | 0 °C |
| High End Case Temperature (ºC) | 70 °C |
| Connector | Dual MPO12 |
| Media Type | parallel SMF |
| Data Rate | 1.6 Tb/s |
| Protocol | Gigabit Ethernet InfiniBand |
| Wavelength (nm) | 1310nm |
