Laser Machines and Systems

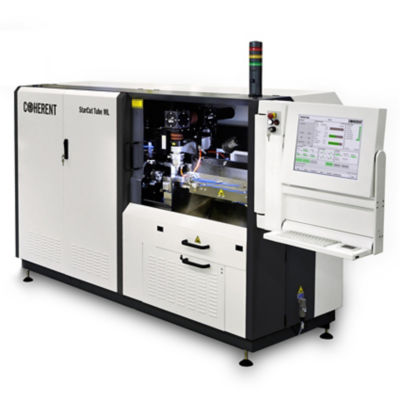

StarCut Tube

StarCut Tube SL

Fully-automated, multi-axis CNC machines for tubes and flat materials, including medical devices such as catheter shafts, stents, hypotubes, PTCA devices, TAVR, etc.

With a rock-solid cutting platform (the SL uses a mineral cast base) these machines offer the ultimate in precision, with contour cutting accuracies better than +/- 5 µm. A choice of fiber laser or the latest Monaco USP laser enables fine cutting of any polymer or metal.

Opt In YES! I want Coherent news and promotions emailed to me.

Required field

By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.

StarCut Tube – Key Options and Parameters

StarCut Tube L 600 is available with a fiber laser, a USP laser or both lasers. StarCut Tube SL is a compact model with the smallest footprint in the market.

Datasheets

StarCut Tube

Product Specifications

Parameter		StarCut Tube L 600	StarCut Tube SL
Infrared Laser Options		60 W Femtosecond USP Laser
		100 W or 200 W Fiber Laser
		USP and Fiber Laser	-
Maximum Tube Diameter (mm)		30	30
Rotary Axis Speed (rev/min)		600 (standard) 1500 (optional)
Travel Range (mm)	X	300 or 600	300
	Y	75	-
	Z	40	40
Overall Dimensions, D x W x H, (mm)		762 x 2625 x 1430	700 x 1340 x 1410
Available with StarFeed S tube feeder		✔	✔
Available with StarFeed L tube feeder		✔	✔

Video Spotlight

Automated Laser Cutting of Long Tubes With StarFeed L

The StarFeed is an automated loader/unloader for the StarCut Tube laser cutting machine and is available in sizes S and L. This combination allows fully automated dry or wet cutting of tubes from 1-20 mm diameter. The StarFeed L stores up to 48 tubes and even allows the processing of oval tubes. Its sensor-controlled gripping unit avoids damage. The end result is a big increase in productivity.

Related Products

ExactCut 430

ExactCut 430 is a precision laser cutting system for automated processing of thin and thick metals and alloys, brittle materials like sapphire, PCD, and ceramics.

PowerLine C product image

PowerLine C

PowerLine C are CO₂ laser-based systems for precision drilling, cutting, scribing, marking, and engraving of many non-metals, including glass, organic materials.

Monaco

Monaco high-power femtosecond lasers deliver superior edge quality in micromachining and improvements in scientific applications like three-photon microscopy.

3D Showroom

Resource List

View all Resources

Laser Machines For Medical Device Manufacturing – XL Precision Technologies

XL Precision Technologies, a leader in medical device and component manufacturing, builds on strong growth by investing in more laser machines, including Coherent StarCut Tube cutting machines and Select manual welders.

Automatic Feeder for Tube Cutting Laser Machine - StarFeed S

The tube cutting laser machine StarCut Tube offers the ultimate precision, with contour cutting accuracies better than +/- 5µm.

StarCut Tube Stent Cutting System - Lab Tour with Roland Wölzlein

Take a glimpse into our StarCut Tube lab and production area and find out more about these fully-automated, multi-axis CNC machines for tubes and flat materials, including medical devices such as catheter shafts, stents, hypotubes, PTCA devices, TAVR, etc.

StarCut Tube Hybrid Cutting & Marking of Medical Devices

Highest flexibility for cutting different medical devices, in metals or plastics, from tubes or flat stock with the Coherent StarCut Tube “hybrid” version. This turnkey laser machine incorporates two lasers in a single compact housing.

StarCut Tube 2+2: Cutting of Tubular and Flat Metallic Substrates

Highest flexibility for cutting different medical devices, in metals or plastics, from tubes or flat stock with the Coherent StarCut Tube “hybrid” version. This turnkey laser machine incorporates two lasers in a single compact housing.

StarCut Tube SL High-Precision Laser Tube Cutting Machine

The laser cutting system StarCut Tube SL provides highest accuracy, superior reliability, and high performance when cutting complex medical devices such as stents, aortic valve replacements, or hypotubes.

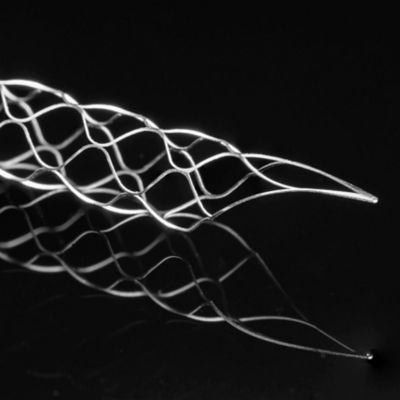

Laser Cutting of Stent Retriever with StarCut Tube SL

The StarCut Tube SL is a complete turnkey machine that incorporates an fs-laser and is ideal for laser cutting complex metal shapes such as thrombectomy stent retrievers.

Motion Dynamics: Versatile Laser Cutting for Neurological Sub-Assemblies

Motion Dynamics is a leading manufacturer of neurological sub-assemblies, including steerable catheters and “pull-wire” assemblies, making use of our StarCut Tube machines for precision cutting of key components.

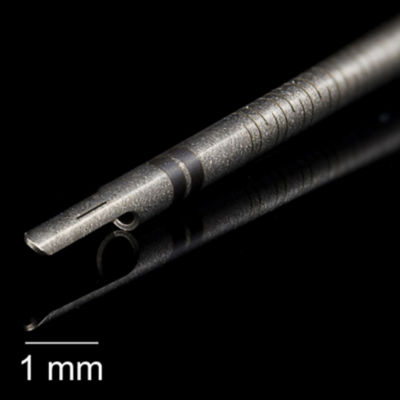

Automated Processing of Hypotubes
