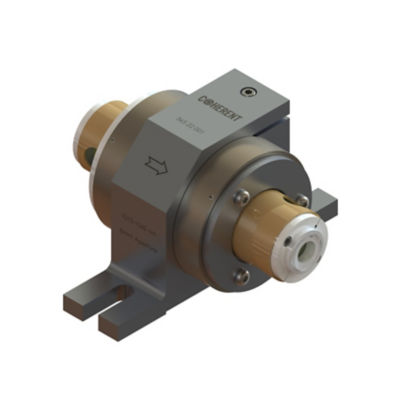

PAVOS Ultra Rotators and Isolators
Optimized for high-power applications with Nd- and Yb-based amplifiers, these premium devices eliminate catastrophic whole beam self-focusing found with lower-grade materials and designs.
PAVOS Ultra Rotators and Isolators safely tolerate high laser power across the entire 1010 nm to 1080 nm window, where they eliminate damaging back-reflections. Several standard apertures plus custom apertures, mounting, and vacuum-compatible options on request.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
PAVOS Ultra Rotators and Isolators - Key Parameters
Safely use any PAVOS Ultra Rotator or Isolator below the following damage thresholds: 10 J/cm2 @ 10ns and 1 J/cm2 at 8ps. Wavelength range 1010 nm to 1080 nm.
Product Specifications
Model Name |
Wavelengths1 (nm) |
Clear Aperture (mm) |
Transmission2 (%) |
Isolation or Extinction2 (dB) |
Max Rated Power Handling (W) |
Damage Threshold |
PAVOS KW Ultra |
1030, 1064 |
12 |
95 |
23 |
1000 W |
10J/cm2 @ 10 ns 1 J/cm2 at 8ps |
PAVOS Ultra Rotators |
1030, 1064 |
8, 12 |
95 |
36 |
400 W |
|
PAVOS Ultra |
1030, 1064 |
8, 12 |
95 |
33 |
||

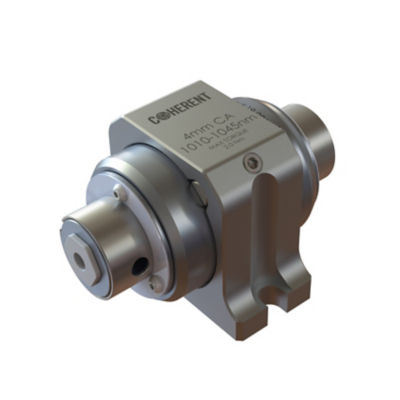

PAVOS+ Ultra Rotators |
1030, 1064 |
4 |
98 |
36 |
||

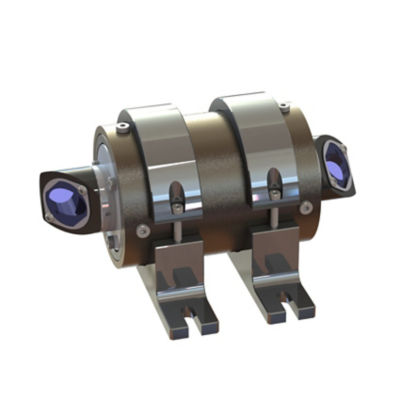

PAVOS+ Ultra Isolators |
1030, 1064 |
4 |
93 |
33 |
Notes:
1. Other wavelengths available upon request.
2. At operating wavelength and temperature (default = 22°C).
