General Optics

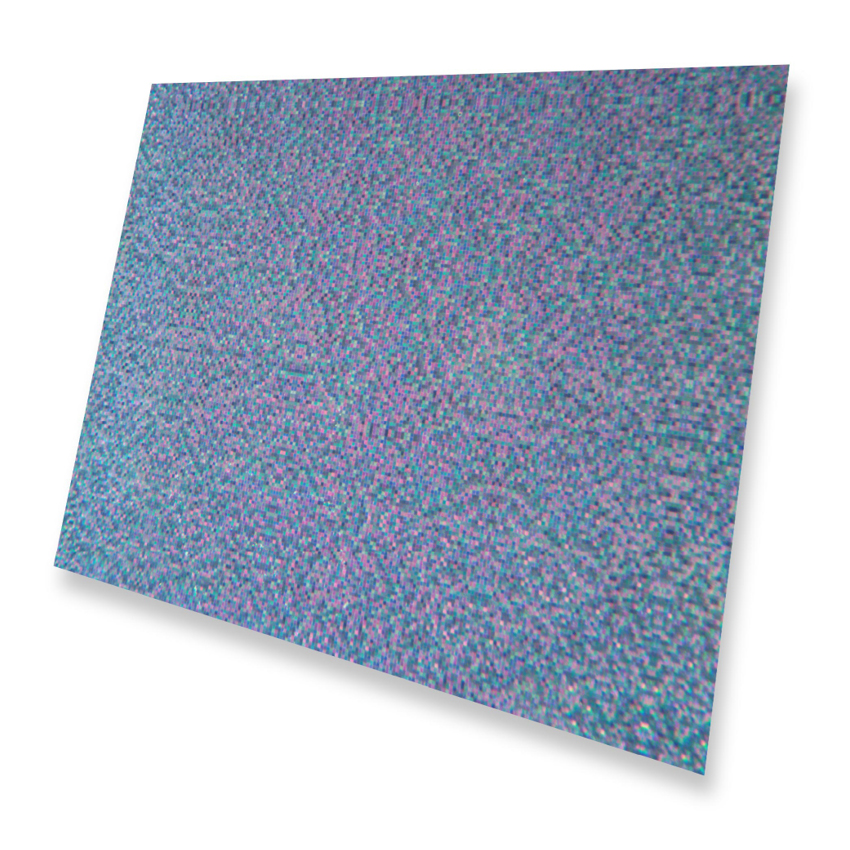

Diffractive Optical Elements (DOE) Diffusers
Use these diffusers to homogenize a light source and expand a narrower beam into a broad range of angles, without the limitations imposed by traditional refractive optics.
These efficient optics are ideal for use in illuminators for Time-of-Flight (ToF) 3D sensing (e.g., cell phones, consumer electronics, autonomous vehicles), for flood illuminators for 2D sensing/machine vision, or to homogenize the output of a high power laser.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
Diffractive Diffusers – Customizable OEM Specifications
Use these diffusers even in harsh environmental conditions, including high optical power and temperatures up to 500 °C, thanks to their organic-free material platform.
Field of Illumination (FWHM intensity vs output angle °) |
Output Shape (Power vs Angle) |
Illumination Uniformity (%) |
Design Wavelength (nm) |
Minimum Transmission (%) |
Thickness (mm) |
Overall Dimensions |
60x45 |
“Batwing” |
±10 |
940±10 |
>85 |
0.675 ± 0.025 |
Custom Cut |
