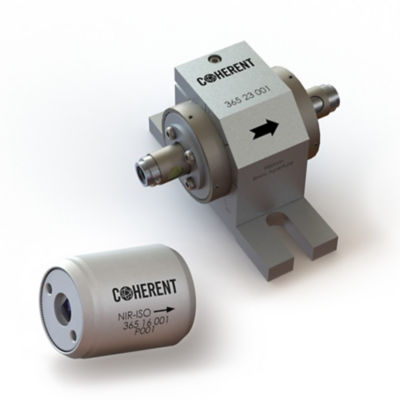

TORNOS Rotators and Isolators

Available at several center wavelengths from 500 nm to 1030 nm, TORNOS Rotators and Isolators prevent optical feedback that could adversely affect laser performance.

TORNOS Rotators and Isolators eliminate frequency instability in amplified laser systems. Their high transmission increases overall efficiency, extending pump diode lifetimes. Broadband models are ideal for laboratory use with tunable lasers and multi-wavelength applications.

TORNOS Rotators and Isolators - Key Parameters

Manipulate the final polarization using an optional waveplate. Safely use any TORNOS Rotator or Isolator below the following damage thresholds:  25 W/cm² CW, 1 J/cm² at 10 ns. Wavelength range 500 nm to 1030 nm.



Product Specifications

Model Name

Clear Aperture Options (mm)

Peak Transmission (%)

Damage Threshold
(W)

Isolation at 22°C (dB)

Medium Power
TORNOS Isolators

4

>88

1 J/cm² at 10 ns
2 kW/cm² CW

>27ᶜ

TORNOS Compact
Rotators

2

≥98

5 W Forward Power Handling

N/A

TORNOS Compact
Isolators

2, 4

≥92

5 W Forward Power Handling

≥33

TORNOS Broadband
Isolators

4

≥87

N/A

>32

ᵃ At center wavelength

ᵇ When placed between crossed polarizers having an extinction ration of ≥1000:1

ᶜ When tuned for maximum isolation
