Axon

Compact, cost-effective femtosecond lasers for life sciences and OEM instrumentation applications in multiphoton microscopy, semiconductor inspection, and nanomanufacturing.

High reliability and common fit and form for all wavelengths simplify integration, with the added functionality of dispersion pre-compensation and optional fast power control.

Axon – Key Parameters

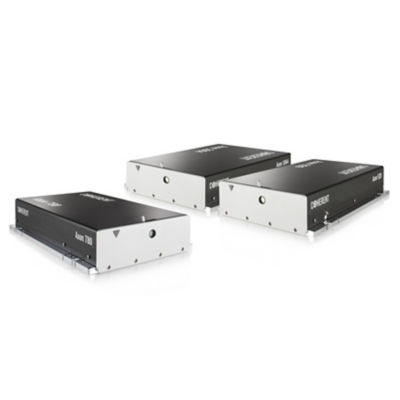

Now available with powers up to 3.5 W, and short <150 fs pulses, all Axon lasers share common dimensions, 212 x 318 x 62 mm. Users may also select the TPC model for fast modulation with >1,000:1 contrast ratio.

Product Specifications

Model Name

Wavelength (nm)

Average Power (mW)

Precompensation (fs2)

Modulation rise/fall time (ns)

Axon 780

780

800

-8,000 to -23,000

(0 to -23,000 optional)

N/A

Axon 780 TPC

700

0 to - 15,000

<500

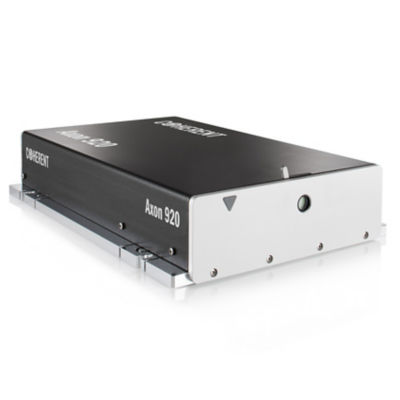

Axon 920-1

920

1200

0 to - 88,000

N/A

Axon 920-2

2500

Axon 920-1 TPC

1000

0 to - 80,000

<500

Axon 920-2 TPC

2000

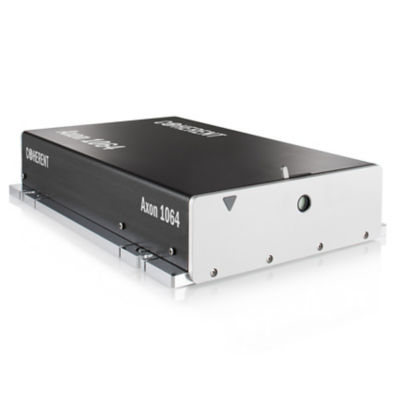

Axon 1064-1

1064

1200

0 to - 28,000

N/A

Axon 1064-3

3500

Axon 1064-1 TPC

1000



0 to - 21,000



<500

Axon 1064-3 TPC

3000

Note: Second Harmonic Generation options on request.
