Multi-Stage TEC Devices
Use our multi-stage TEC devices when you need to achieve larger ΔT in excess of the values (typical maximum ~70°C) available from single-stage TEC products.
These multi-stage TEC devices consist of up to 5 TEC elements in a permanently bonded stack. Since they are thermally in series, they can sustain high ΔT. Typical uses include automotive, industrial, telecom, medical, consumer, aerospace, and oil/gas industry applications.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
Multi-Stage TEC Product Overview
Use these ultra-compact solid-state devices for cooling & precision temperature control in any orientation, as well as in zero gravity and/or high G conditions.

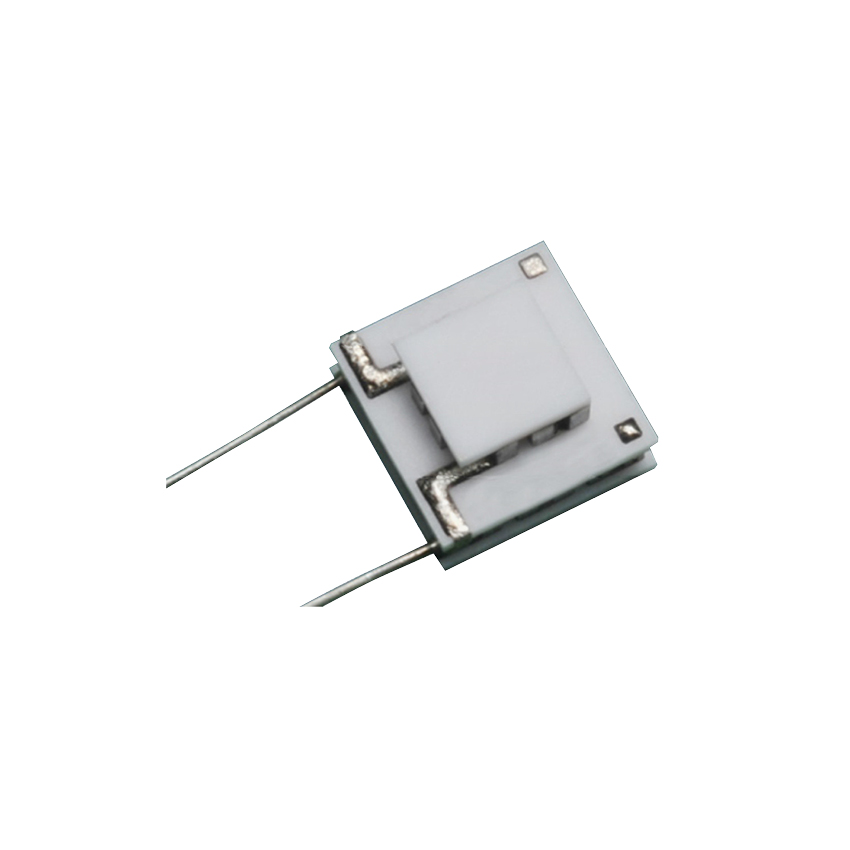

- Multi-Stage TEC NL2011T

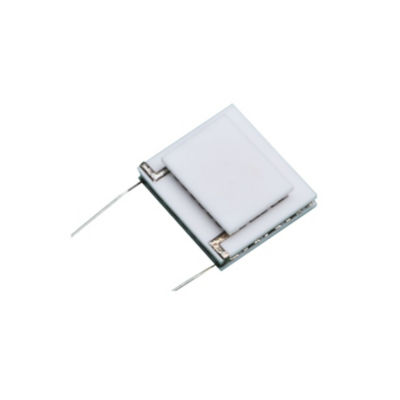

- Multi-Stage TEC NL2012T
- Multi-Stage TEC NL2021T

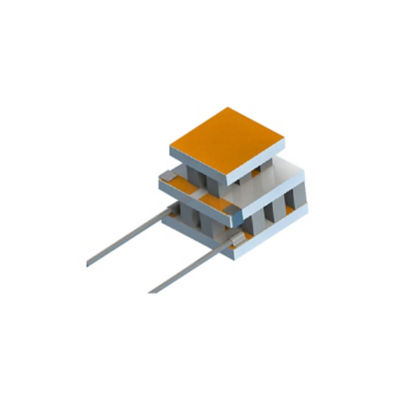

- Multi-Stage TEC NL2022T

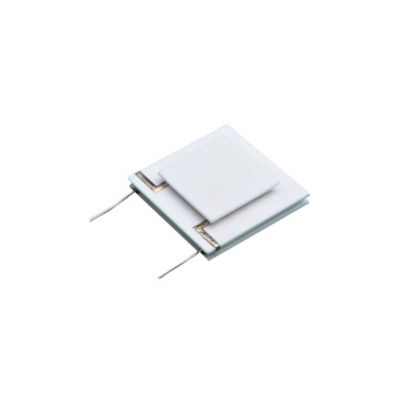

- Multi-Stage TEC NL2063T

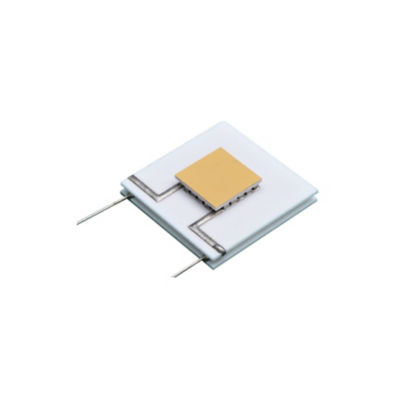

- Multi-Stage TEC NL2064T

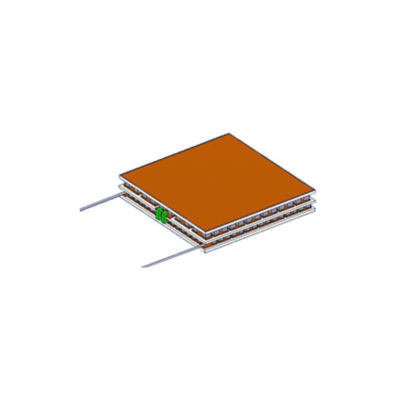

- Multi-Stage TEC NL2070
- Multi-Stage TEC NL2076

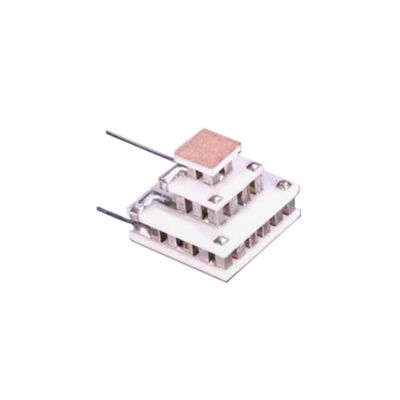

- Multi-Stage TEC NL3021T AC BC

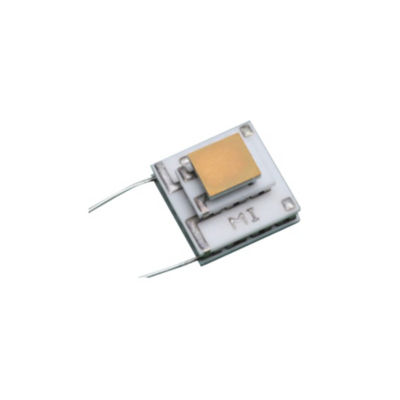

- Multi-Stage TEC NL3026T

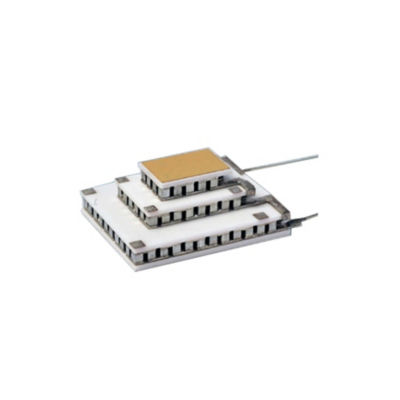

- Multi-Stage TEC NL3040

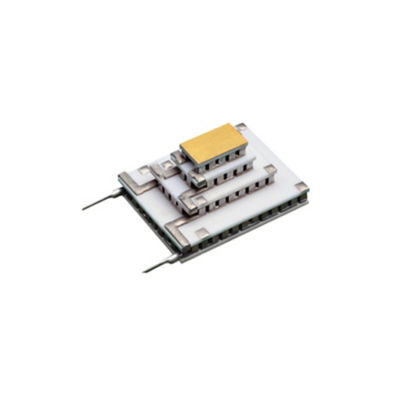

- Multi-Stage TEC NL4040

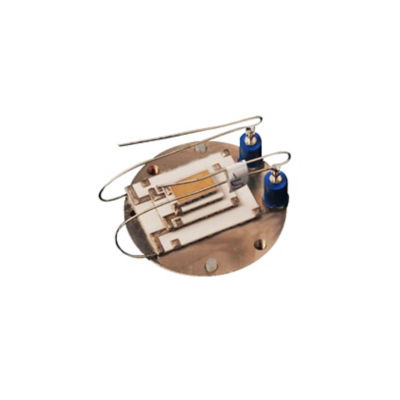

- Multi-Stage TEC SP2394

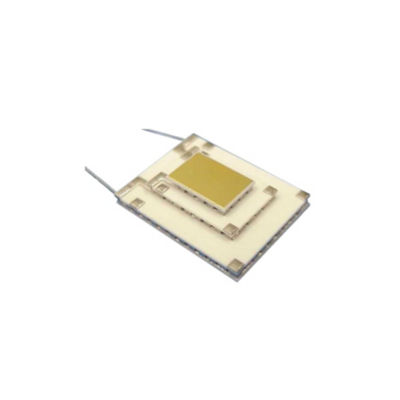

- Multi-Stage TEC SP2402
Product Name |
Number of stages |
Imax 27°C (amps) |
Vmax 27°C (volts) |
Qmax 27°C (watts) |
ΔT Vacuum (27°C) |
Module Height (mm) |
Top Ceramic Dimensions LxW (mm) |
Base Ceramic Dimensions LxW (mm) |
NL2012T-01AC |
2 |
1.2 |
5.4 |
2.4 |
86 |
3.76 |
6.6x8.8 |
9.9x11 |
NL2063T-01AB |
2 |
4.6 |
8.2 |
13.4 |
86 |
5.94 |
19.6x19.6 |
29.6x29.7 |
NL2076 |
2 |
7.2 |
15.5 |
44.6 |
87 |
7 |
40x40 |
40x40 |
NL2070-01AC |
2 |
7.2 |
15.5 |
45 |
88 |
8 |
40x40 |
40x40 |
NL2022T-01AC |
2 |
1.4 |
0.8 |
0.4 |
89 |
3.78 |
3.2x3.2 |
4x4 |
NL2021T-01AC |
2 |
1.4 |
2 |
0.9 |
90 |
3.78 |
4x4 |
6.6x6.6 |
NL2011T-01AC |
2 |
0.7 |
1.9 |
0.5 |
91 |
4.29 |
4x4 |
6.6x6.6 |
NL2064T-11AB |
2 |
5.4 |
8.6 |
10.4 |
101 |
6.1 |
13x13 |
29.6x29.7 |
NL3026T-01AC |
3 |
1.3 |
3.4 |
0.6 |
109 |
5.94 |
4.4x4.1 |
8.8x8.8 |
NL3021T-01AC |
3 |
1.3 |
1.9 |
0.3 |
110 |
5.38 |
2.5x2.5 |
6.6x6.6 |
NL3040-01BC |
3 |
4.5 |
7.3 |
5.6 |
110 |
10.8 |
13x8.6 |
28.3x21.7 |
SP2402-01AB |
3 |
5.3 |
8.9 |
8.7 |
115 |
6.73 |
13x8.6 |
28.27x21.7 |
SP2394-07AB |
4 |
5.1 |
8.5 |
4.5 |
130 |
8.69 |
10.8x6.4 |
28.3x21.7 |
NL4040-04BC |
4 |
4 |
6.8 |
2.7 |
- |
14.1 |
10.8x6.4 |
28.3x21.7 |
