Climatherm (CTA) Air-to-Air Cooling Systems
Protect your electronics from extreme conditions with up to 250 W of cooling power in a lightweight, compact package based on our solid-state TEC cooling technology.
Climatherm coolers feature a RoHS EU-compliant, compact, lightweight design and delivers highly efficient heat transfer. Typical applications include electronic enclosure cooling, food & beverage storage, battery cabinet cooling, and laboratory instruments.
Climatherm Air-to-Air Coolers
Rely on these maintenance-free lightweight coolers featuring RoHS EU compliance and high thermal efficiency. They operate on 12 or 24 VDC power and use IP55-rated fans.
Product Name |
Height (mm) |
Base Length (mm) |
Base Width (mm) |
Cooling Capacity |
Current (A) |
Voltage (VCD) |
Voltage Range (VDC) |
Wiring Location |
CTA230-0001-01 |
135 |
230 |
120 |
72 Watts |
8 |
12 |
14-28 |
External |
CTA230-0001-03 |
135 |
230 |
120 |
72 Watts |
4 |
24 |
14-28 |
External |

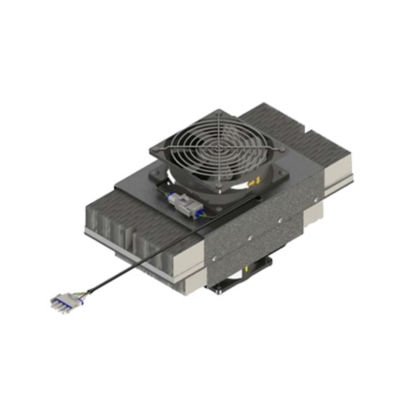

CTA300-0001-01 |
157 |
300 |
150 |
132 Watts |
8 |
24 |
14-28 |
External |

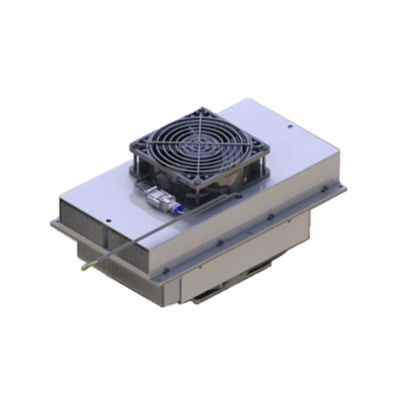

CTA305-0001-01 |
162 |
300 |
180 |
141 Watts |
8 |
24 |
14-28 |
External |

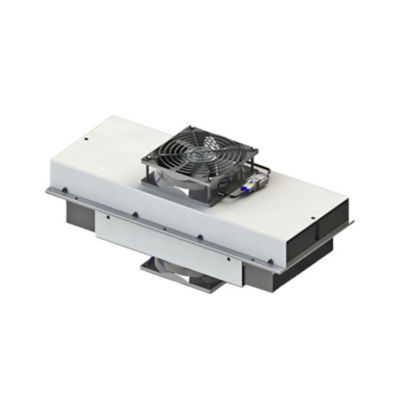

CTA400-0001-01 |
174 |
400 |
180 |
246 Watts |
14 |
24 |
14-28 |
External |
