Laser Machines and Systems

EasyMark Series


Self-contained, table-top laser marking systems for a huge variety of marking, annealing, engraving, and cutting in many materials.

EasyMark are simple-to-use, manually loaded tools for marking, and engraving. A powerful user interface and operational flexibility make them ideal for use with tooling, medical devices, electronics, and jewelry.


EasyMark Series – Model Details

The Laser FrameWork user interface makes it simple to set up and use all EasyMark systems. Reliable fiber laser technology ensures low cost-of-ownership.

Product Specifications

Model

Fiber Laser Options

Maximum Marking Area (mm)

Rotary Axis

Additional Key Features

EasyMark

20 W, 20 W Varia, or 50 W

120 x 120

Optional

Optional Viewing Camera

EasyMark XL

240 x 240

EasyJewel

120 x 120

Ring Marking Module (RMM)

On-the-fly engraving

EasyMark LD

20 W Varia

120 x 120

Adjustable pulse length


Video Spotlight

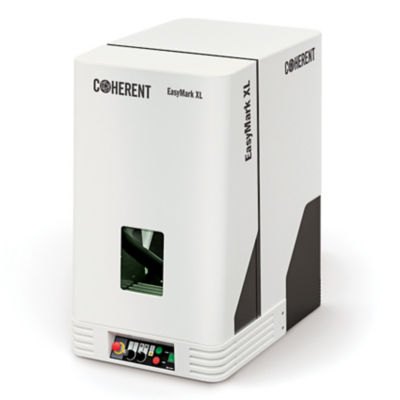

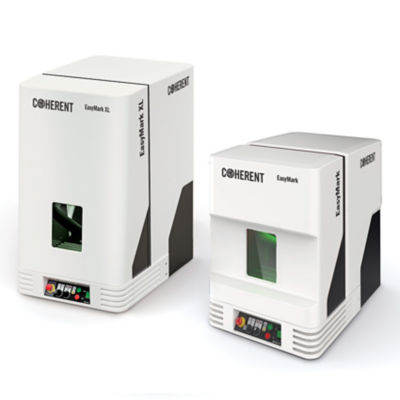

Laser Marking Systems: EasyMark and EasyMark XL

The EasyMark and EasyMark XL are compact and easy-to-use table-top laser marking and engraving machines that include an option for simplified 3D engraving. They are Class I laser systems with manual loading and unloading of parts. Both machines can process a wide range of metals, plastics, rubber, wood, and other organic materials. The EasyMark XL combines a small physical footprint with a large marking field.
