Laser Machines and Systems

LFS/QFS with FLBK SC

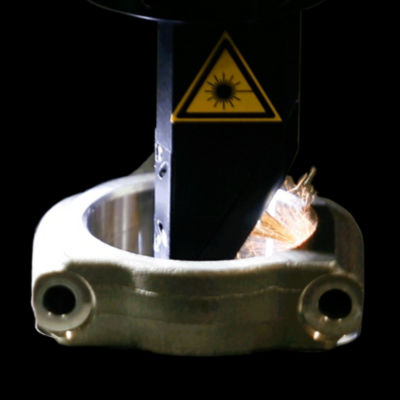

Perform fast, highly consistent laser scribing of combustion engine conrods with a fiber-laser based system that readily integrates into your production line.

For over 20 years, the FLBK SC has been the worldwide standard for automotive conrod scribing (for subsequent hydraulic cracking). Its application optimized fiber lasers and controlled swivel optics deliver high throughput and process consistency.


FLBK SC features and principles

Choose the laser source that matches your specific processing requirement.



Product Specifications

Model

Included Laser

Scribing Capabilities

Application

Other Features

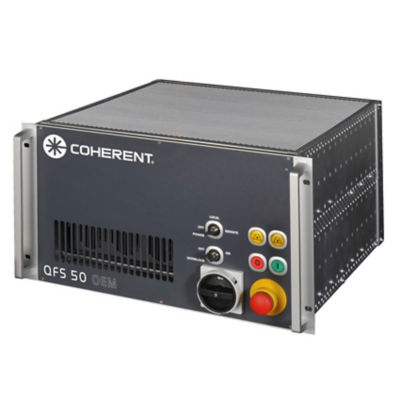

QFS with FLBK SC

50 W, ns pulsewidth fiber laser

V notches of up to 1.2 mm in depth

Automobile and other small engine conrods

• Motorized beam delivery head
• G-Code programming
• Beam delivery optics
• Process gas nozzle
• Control software

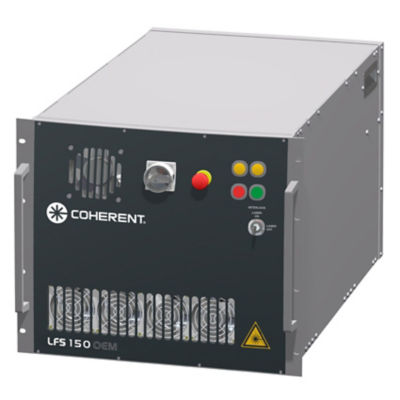

LFS with FLBK SC

150 W, ms pulsewidth fiber laser

Perforations up to 3 mm in depth

Truck or other large engine conrods
