Lasers

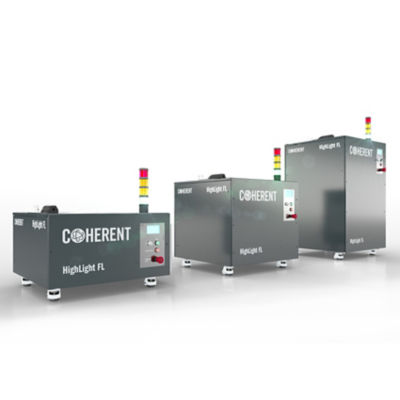

HighLight Fiber Laser (FL)
See our cost-effective, industrial, multi-kW fiber lasers for many common welding tasks — maximizing operational flexibility with detachable process fibers.
The HighLight FL employs a unique multi-stage back reflection immunity system to enhance reliability and lifetime, and enables safe processing of highly reflective materials, including brass, copper, and aluminum.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
HighLight Fiber Laser Overview
Choose from a range of output powers, process fiber lengths and diameters, and a Fiber-Fiber-Switch option for multiplexing output into four separate process fibers.
Product Specifications
Product |
Model |
Output Power (kW) |
Dimensions (mm) |
Output Mode |
FFC/FFS |
Standard |
HighLight FL1000 |
1 |
794 x 1040 x 1067 |
Multi-mode |
Yes |
HighLight FL2000 |
2 |
||||
HighLight FL4000 |
4 |
||||
HighLight FL5000 |
5 |
||||
HighLight FL6000 |
6 |
||||
HighLight FL7500 |
7.5 |
794 x 1040 x 1565 |
|||
HighLight FL8000 |
8 |
||||
HighLight FL10000 |
10 |
||||
Compact |
HighLight FL1000CSM |
1 |
794 x 916 x 557 |
Single-mode |
No |
HighLight FL1500CSM |
1.5 |
||||
HighLight FL2000CSM |
2 |
||||
HighLight FL2500CSM |
2.5 |
||||
HighLight FL1000C |
1 |
794 x 916 x 557 |
Multi-mode |
||
HighLight FL2000C |
2 |
||||
HighLight FL4000C |
4 |
794 x 916 x 824 |
|||
HighLight FL5000C |
5 |
||||
HighLight FL6000C |
6 |
794 x 951 x 1322 |
|||
HighLight FL7500C |
7.5 |
||||
HighLight FL8000C |
8 |
||||
HighLight FL10000C |
10 |
