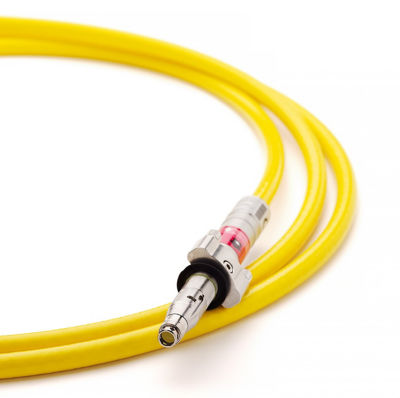

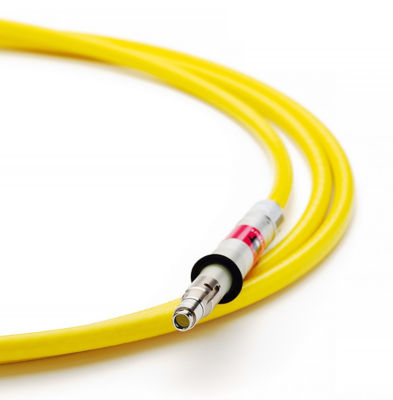

Fiber Optic Cables


Get reliable, low loss cables for delivering multi-kW laser beams over long distances — they’re rugged enough to perform consistently, even in harsh environments.

These cables combine end cap, mode stripper, and water cooling to enable low loss transmission of high laser power levels for extended periods with stability and reliability. There are numerous configuration and connector options.


Fiber Optic Cables Key Parameters

Select from standard QBH, QD, or RQB connectors, plus a wide range of AR coating, length, and even core shape options, to get the exact delivery fiber you require.



Product Specifications



Connector Type



QD

QBH

RQB

Max Power (CW)
@1064nm

20 kW

10 kW



1.5 kW



AR-coatings

1030-1090 nm

780-1100 nm

510-550 nm

430-480 nm

Fiber core dimension

≤1000 µm, round/square

Length

≤200 m

Transmission losses

< 3% (typical 1%)

Power loss capability
in the connector

2 kW for 10 s
1 kW for 10 min
0.5 kW continuously

2 kW for 10 s
1 kW for 10 min
0.5 kW continuously

100 W for 10 s
50 W for 1 min
10 W continuously

Water cooled

Yes

Yes

No

Compatible interface

Trumpf LLK-D
Highyag LLK-Auto
IPG LCA

Trumpf LLK-Q
IPG HLC-8/LC-8

Trumpf LLK-Q
IPG HLC-8/LC-8
