PM10K+ & PM15K+ Laser Power Sensors
The PowerMax kW sensor line now offers three water-cooled, large-area options for measuring up to 20kW in under 5 seconds:

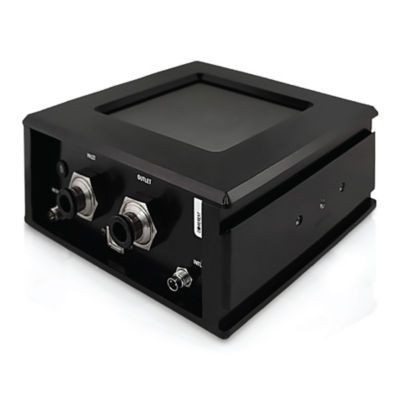

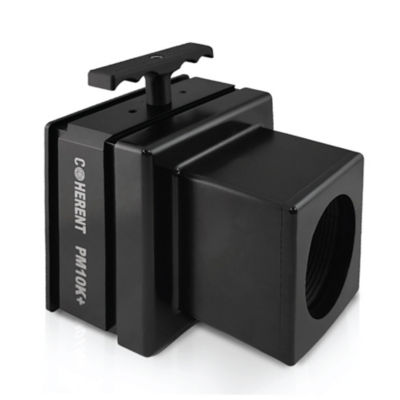

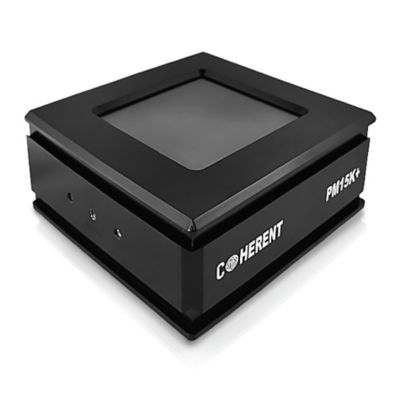

PM10K+ (10 kW), PM10K+ with Backscatter Shield (10 kW with 99 % back-reflection capture), and the larger PM15K+ (15 kW / 20 kW intermittent). All use our broadband BB+ absorber (190 nm – 11 µm), include safety interlock, and connect via USB/DB-25 or RS-232 for drop-in integration.
Key Specifications
• Continuous power: 10 kW (PM10K+), 10 kW + backscatter capture (Shield), 15 kW (PM15K+); intermittent to 12 kW / 20 kW.
• Active area: 65 × 65 mm (PM10K+) or 100 × 100 mm (PM15K+).
• Broadband 0.19 – 11 µm BB+ coating.
• 3- to 5-second measurement; water-cooling with temp/flow interlock.

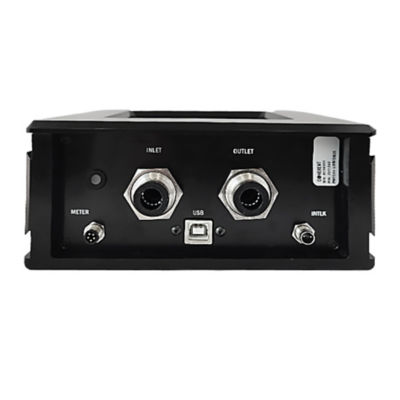

• Interfaces: DB-25 + USB or RS-232; dovetail mount included.
PM10K+ , PM10K+ with Backscatter Shield and PM15K+ Specifications
| PM10K+ | PM10K+ with Backscatter Shield |
PM15K+ | |
Wavelength Range (µm) |
0.19 to 11 |
||
Power Range (W) |
100 to 10,000 |
100 - 15,000 | |
Max. Intermittent Power (kW) (<5 min.) |
12 |
20 | |
| Noise Equivalent Power (W) (typical) | 0.2 (USB and RS-232) 1 (DB-25 with meter) |
0.3 (USB and RS-232) 3 (DB-25 with meter) |
|
| Maximum Power Density (kW/cm²) | 6.0 at 1 kW 2.6 at 5 kW 2.7 at 10 kW 2.5 at 12 kW |
3.2 at 5 kW 2.3 at 10 kW 2.0 at 15 kW 1.9 at 20 kW |
|
| Recommended Minimum Beam Size (mm) | 6.5 at 1 kW 22 at 5 kW 31 at 10 kW 35 at 12 kW |
20 at 5 kW 33 at 10 kW 44 at 15 kW 52 at 20 kW |
|
| Minimum Water Flow Rate (lpm) | 6 (~10 PSI) | 8 (~7 PSI) | |
| Water Temperature Range (°C) | 10 to 25 | ||
| Response Time (0 to 99%) (seconds) (typical) | 3 (Speed-up On) 10 (Speed-up Off) |
4.5 (Speed-up On) 14 (Speed-up Off) |
|
| Maximum Energy Density (mJ/cm²) (1064 nm, 10 ns) | 600 | ||
| Detector Coating | BB+ | ||
| Detector Dimensions (mm) | 65 x 65 | 65 dia. | 100 x 100 |
| Calibration Uncertainty (%) | ±2 | ||
| Power Linearity (%) | ±1.5 | ||
| Spectral Compensation Accuracy (%) | ±1.5 | ||
| Calibration Wavelength (nm) | 1080 | ||
| Cooling Method | Water | ||
| Interface Type | DB-25 + USB, RS-232 | ||
| Cable Length (m) | 2.0 (DB-25) | ||
Part Number DB-25 + USB RS-232 |
2293937 2293938 |
2293940 2293941 |
2311240 2311244 |
