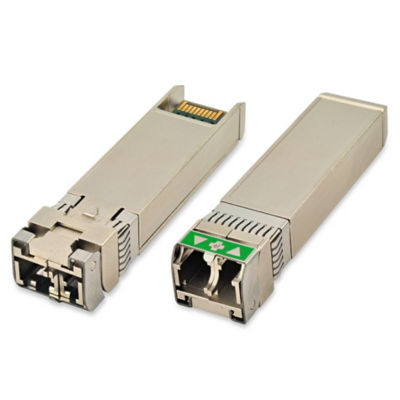

25G DWDM 15km Multi-Rate Tunable SFP28 with APD Rx Optical Transceiver
DWDM, full band tunable C-Band, 100GHz spacing, Limiting APD, 24.33Gbps/25.78Gbps multi-rate transceiver, single mode, SFP+ footprint, 3.3V, LC connector, -40/85°C operation, 15km
FTLF6836P1BNL transceivers are Enhanced Small Form Factor Pluggable Tunable SFP28 transceivers designed for use in 25Gb/s links up to 15km of G.652 single mode fiber. They are compliant with SFF-8431, SFF-8432, SFF-8690, and support 25GbE and CPRI 10 over 15km fiber. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The optical transceiver is RoHS compliant as described in Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLF6836P1BNL |
|---|---|
| Description | DWDM, full band tunable (C-Band, 100GHz spacing), Limiting APD, 24.33Gbps/25.78Gbps multi-rate transceiver, single mode, SFP+ footprint, 3.3V, LC connector, -40/85°C operation, 15km |
| Operating Distance | 15 km |
| Data Transfer Rate | 25G |
| Form Factor | SFP+ |
| Wavelength (by band type) | C-Band DWDM Tunable |
| Transmitter Optical Output Power (dBm) | 0dBm |
| Receiver | APD |
| Management Interface | SFF-8472 |
| Low End Case Temperature (ºC) | -40 °C |
| High End Case Temperature (ºC) | 85 °C |
| Transmitter | Tunable + InP MZM |
| Connector | LC |
| Media Type | Duplex SMF |
| Data Rate | 25.78 Gb/s |
| Diagnostics | Digital |
