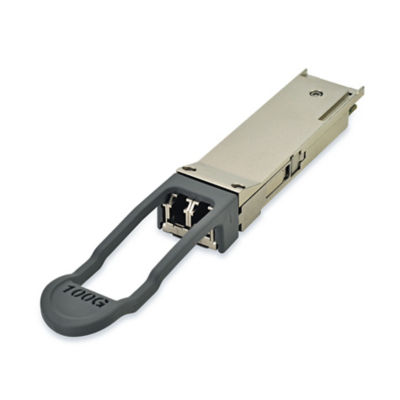

100m 100G QSFP28 SWDM4 Optical Transceiver
FTLC9152RGPL 100G QSFP28 transceiver modules are compliant with the QSFP28MSA and IEEE 802.3bm CAUI-4. Digital diagnostics functions are available via theI2C interface, as specified by the QSFP28 MSAand Finisar Application Note AN_x005F_xFFFE_21715. The transceiver is RoHS- 6 compliant per Directive 2011/65/EU, and Finisar Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLC9152RGPL |
|---|---|
| Operating Distance | 100 m |
| Data Rate | 103.1 Gb/s |
| Data Transfer Rate | 100G |
| Protocol | Gigabit Ethernet |
| Connector | LC |
| Media Type | Parallel MMF |
| Form Factor | QSFP28 |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| High End Case Temperature (ºC) | 70 °C |
| Wavelength (nm) | 850nm Band |
| Transmitter | 4x SWDM VCSEL |
| Receiver | PIN |
