10 km Multi-rate 100Gb/s CFP2 Optical Transceiver Module

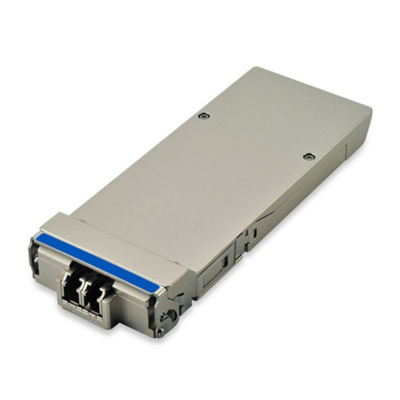

Product image of 10 km Multi-rate 100Gb/s CFP2 Optical Transceiver Module

2nd generation FTLC1122SDNL 100G CFP2 transceiver modules are compliant with the CFP MSA, IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F OTL4.4 requirements specified in ITU-T, and IEEE standards, and ITU-T recommendations G.709/Y.1331. Digital diagnostics functions are available via the MDIO interface, as specified by the CFP MSA and Finisar Application Note AN- 21185. The transceiver is RoHS-compliant and lead-free per Directive 2011/65/EU, and Finisar Application Note AN-2038. For details of our compliance standards, click here.

Parameter FTLC1122SDNL
Operating Distance 10 km
Data Rate 112 Gb/s
Data Transfer Rate 100G
Protocol Ethernet
OTN OTU3 or OTU4
Connector LC
Media Type Duplex SMF
Form Factor CFP8
Voltage Supply (V) 3.3 V
Diagnostics Digital
High End Case Temperature (ºC) 75 °C
Wavelength (nm) 1310nm Band
Transmitter 4x LWDM DFB Laser
Receiver PIN
