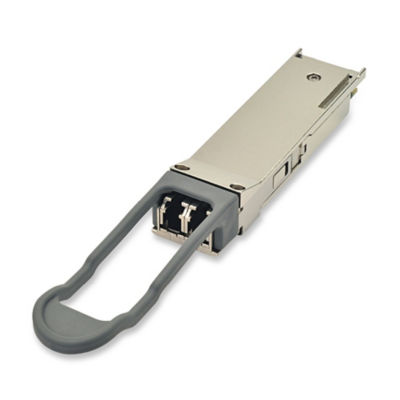

40GE SWDM4 QSFP+ Optical Transceiver Module
FTL4S1QE2C QSFP+ transceiver modules are compliant with the QSFP+ MSA,2 and IEEE 802.3ba XLPPI electrical interface3. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details. For details of our compliance standards, click here.
Datasheet
| Parameter | FTL4S1QE2C |
|---|---|
| Operating Distance | 300 m |
| Data Transfer Rate | 40G |
| Form Factor | QSFP+ |
| Receiver | PIN |
| High End Case Temperature (ºC) | 70 °C |
| Transmitter | 4x SWDM VCSEL |
| Connector | LC |
| Media Type | Duplex MMF |
| Data Rate | 41.2 Gb/s |
| Protocol | Gigabit Ethernet InfiniBand |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 850nm Band |
