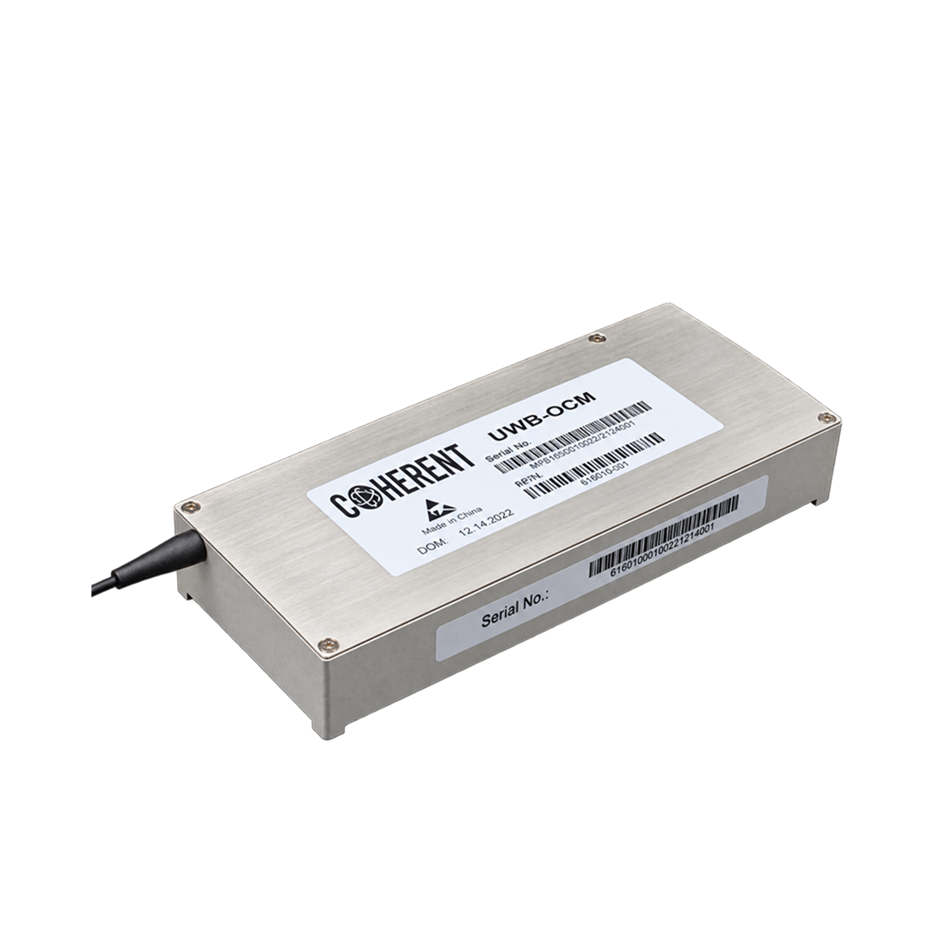

Ultra-Wideband Optical Channel Monitor (UWB-OCM)
Use our wideband monitors when you’re an OEM who needs to measure both channel power and frequency over a broad range using just a single DWDM monitoring solution.
UWB-OCM has the widest optical frequency measurement range of >10 THz for a single device due to our proprietary METOD ultra-wide scanning tunable optical filter technology. It monitors up to 4 locations with a wide power measurement range from 0 dB to -40 dBm.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
UWB-OCM – Key Specifications
Monitor C, L, C++, L++, or C+L WDM high-capacity grids, perform ROADM equalization or smart amplifier equalization, and conduct automated maintenance.
UWB-OCM – Key Specifications |
|
Tuning Range (THz) |
10 |
Maximum Number of Channels |
200 |
Power Measurement Range (dBm) |
0 to -40 |
Absolute Power Accuracy (dB) |
±1.0 |
Relative Power Accuracy (dB) |
1.0 |
Absolute Frequency Accuracy (GHz) |
±3.25 |
Power Repeatability (dB) |
±0.5 |
Polarization Dependent Loss, PDL (dB) |
0.5 |
