Laser Machines and Systems

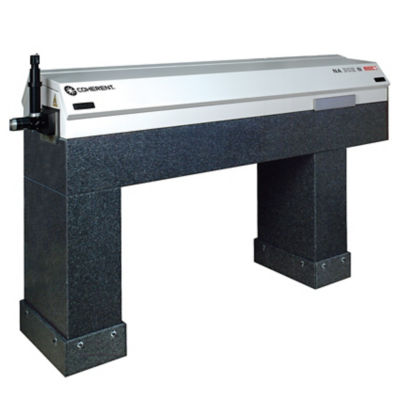

NA Needle Drilling System
Drill up to 4 or 5 needles per second and get precise, consistent hole size and shape thanks to the combination of a laser with high pulse-to-pulse stability and a granite drilling platform.
Blind holes are automatically drilled, each with just a single long pulse that is precisely shaped so that the holes are smoothly drilled without undesirable thermal damage. Optimized for holes ranging from 50 to 750 μm diameter, with aspect ratios as high as 10:1.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
NA Needle Drilling Machines
The combination of a laser with high pulse-to-pulse stability mounted on a granite platform delivers precision consistent hole size and shape. Drill up to 3 needles per second.
Product Specifications
Model Name |
Hole diameter (µm) |
Pulse Rate (Hz) |
NA 200 N |
60 - 330 |
0.8-3 |
NA 302 N |
120 - 470 |
0.8-3 |
NA 502 N |
320 - 750 |
0.8-2 |
Video Spotlight
High Volume Production of Suture Needles
The needle drilling systems NA200 and NA502 enable high-volume production of suture needles as small as 160 µm at low production costs. The holes are characterized by smooth features, minimized thermal damage and excellent unit-to-unit consistency.
