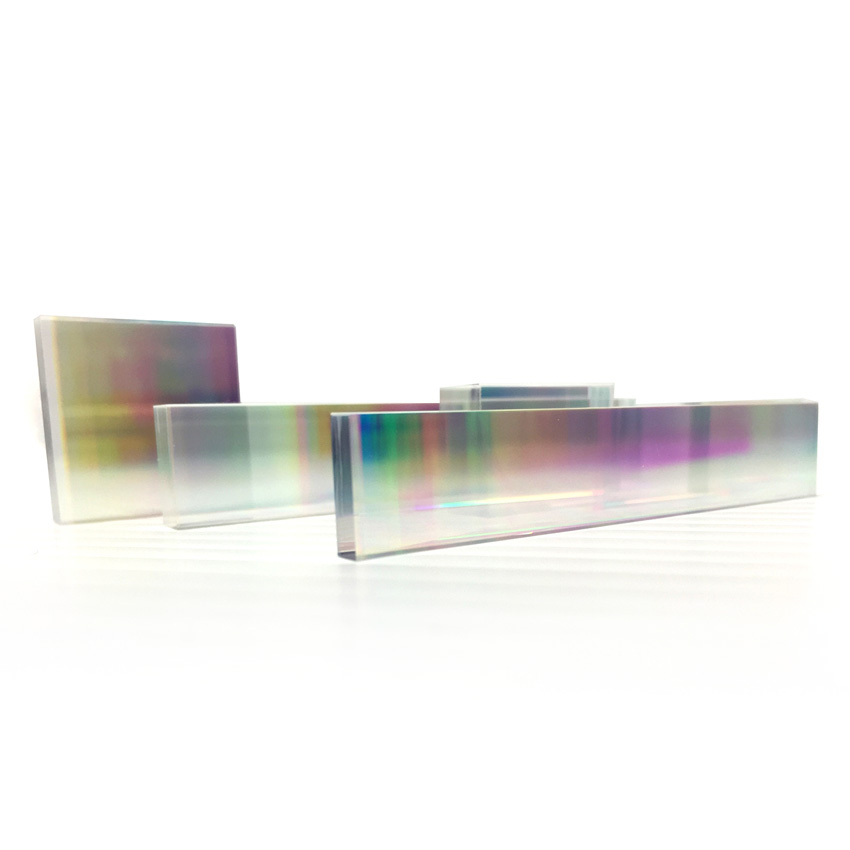

透過型回折格子
透過型回折格子を使用して波長ごとに光を角度分散させ、経済性と優れた性能の両方を実現する当社独自の製造方法のメリットを享受できます。
これらの回折格子は、高い回折効率 (標準95%) と低い偏光依存損失 (PDL) を特徴としており、特にマルチパス設計での損失を最小限に抑えます。光損傷閾値が高いため、高エネルギーパルスおよびCWレーザシステムでの使用に最適です。
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
透過型回折格子 – 主要な仕様
動作波長範囲にわたってS偏光とP偏光の両方をサポートする回折格子を使用します。回折効率は単にS偏光とP偏光の平均効率です。
Part Number Prefix (Click Link for Datasheet) |
Optimal Wavelength Range (nm) |
Operational Polarization |
Angle of Incidence (°) |
Diffraction Efficiency (%) |
Line Density (Lines/mm) |
800±20 |
S and P |
34.0±1 |
≥94 |
1398.6 |
|
800±20 |
S |
47.8±1 |
≥94 |
1851.85 |
|
850±20 |
S |
30.7±1 |
≥94 |
1208.46 |
|
875±20 |
S and P |
41.0±1 |
≥94 |
1503.76 |
|
895±20 |
S and P |
49.5±1 |
≥94 |
1702.13 |
|
915±10 |
S |
57.9±1 |
≥93 |
1851.85 |
|
930±20 |
S and P |
44.2±1 |
≥94 |
1500.38 |
|
970±10 |
S |
51.3±1 |
≥94 |
1600 |
|
970±10 |
S |
63.9±1 |
≥93 |
1851.85 |
|
1030±10 |
S |
55.5±1 |
≥94 |
1600 |
|
1030±10 |
S |
61.2±1 |
≥94 |
1702.13 |
|
1030±10 |
S |
63.6±1 |
≥94 |
1739.13 |
|
1040±20 |
S and P |
31.3±1 |
≥94 |
1000 |
|
1060±20 |
S |
58.0±1 |
≥94 |
1600 |
|
1275-1345 |
S and P |
52.0±1 |
≥94 peak |
1201.2 |
|
1525-1565 |
S and P |
48.3±1 |
≥94 |
966.18 |
|
1525-1565 |
S and P |
46.5±1 |
≥94 |
940.07 |
|
1525-1565 |
S and P |
50.6±1 |
≥94 |
1000 |
|
T-1200C |
1529-1568 |
S |
68±1 |
≥90 |
1201.2 |
1570-1610 |
S and P |
48.4±1 |
≥92 |
940.07 |
|
1526-1610 |
S and P |
47.5±1 |
≥92 |
940.07 |
|
1500-1800 |
S and P |
35.5±1 |
≥95% peak, ≥85% over range |
711.24 |
