レーザ出力センサー
これらの校正済みで追跡可能なレーザ出力センサーで、深紫外線から赤外線まで、正確なレーザ出力計測を行うことができます。
- 幅広い選択肢 豊富なラインナップの中から、お客様の計測に最適なセンサーをお選びください。
- メーター不要のオプション メーターエレクトロニクスを組み込んだセンサーにより、従来のメーターは不要です。
- 地域別校正 欧州、北米、アジアの校正ラボ。
あらゆる波長および出力に対応するセンサー
サーモパイル、熱電、および半導体検出器を使用することで、nWからkWまでのCWおよび変調されたレーザの平均出力、さらにパルス形状を計測できます。センサーケーブル内にメーターエレクトロニクスを組み込んだ多くのモデルをご用意しています。
Power Sensor Product Family
Sensor Type |
Cooling |
Wavelength Range |
Minimum Power |
Maximum Power |
Maximum Beam Diameter |
Interface |
Unique, high-accuracy sensor for high-power industrial lasers (10 kW continuous/12 kW intermittent) that combines fast response and large active area.
|
Water |
0.19 µm to 11 µm |
100 W |
10 kW |
65 mm |
DB25 + USB
|

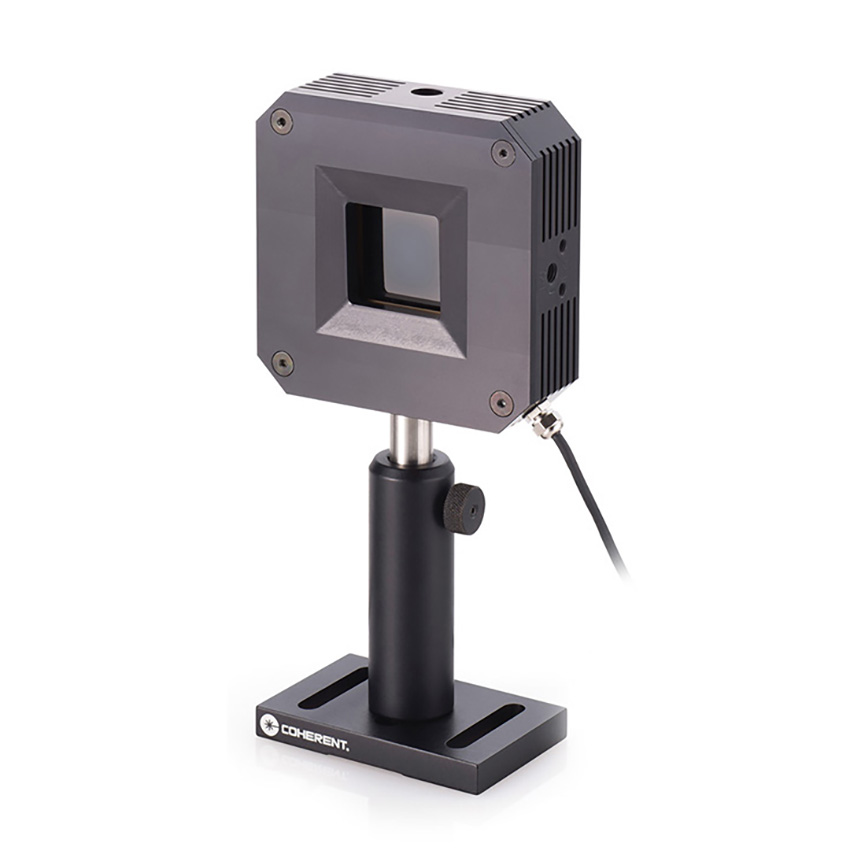

Robust sensors combing high power handling, large dynamic range, broad wavelength coverage, large diameter, and uniform spatial response, plus position sensing options.
|
Air, Fan, Water |
0.19 µm to 11 µm |
100 µW |
6 kW |
200 mm |
DB25 RS-232* USB* |
Fast Thermoelectric Power Sensors ➝ Unique technology combines broad wavelength coverage, large dynamic range, and high damage resistance with fast response speed.
|
Air, Fan, Water |
0.45 µm to 11 µm |
100 mW |
350 W |
30 mm |
DB25 RS-232* USB* |

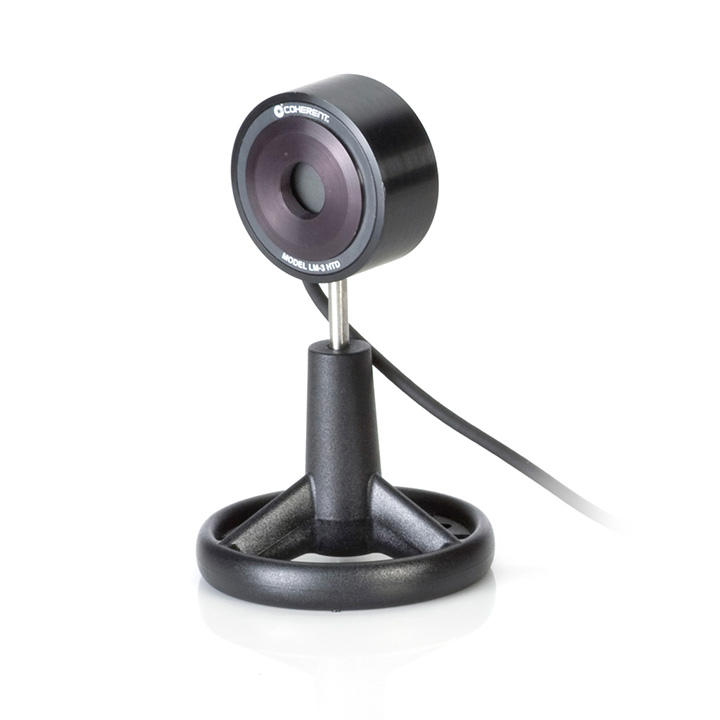

High sensitivity for measuring extremely low powers at very fast response times.
|
Air |
Si: 250 nm to 1100 nm |
5 µW |
140 mW |
10 mm |
DB25 USB* |
Ge: 800 to 1800 nm |
10 nW |
10 mW |
5 mm |
DB25 |
* Doesn't require a separate meter. All meter electronics are integrated within the sensor cable.
