Laser Energy Sensors

Measure laser pulse energy over a huge range of wavelengths, repetition rates, pulse energies, and beam diameters.


  • Superior Damage Resistance Avoid sensor damage from high pulse energy lasers with high quality coatings.
  • Go Large Measure beams up to 35 mm diameter.
  • Easy Operation Simplify use with sensors that have integrated meter electronics.
Laser Energy Sensors

A Full Spectrum of Laser Energy Sensors

Coherent sensors can measure energy per pulse or average power of pulsed lasers from the nanojoule to the multi-joule level, over wavelengths from the deep ultraviolet through the far-infrared, and from single pulses to repetition rates of 10 kHz.

Power Sensor Product Family

Sensor Type

Wavelength

Maximum Beam Size (mm)

Maximum Pulse Energy

Maximum Repetition Rate (kHz)

Interface

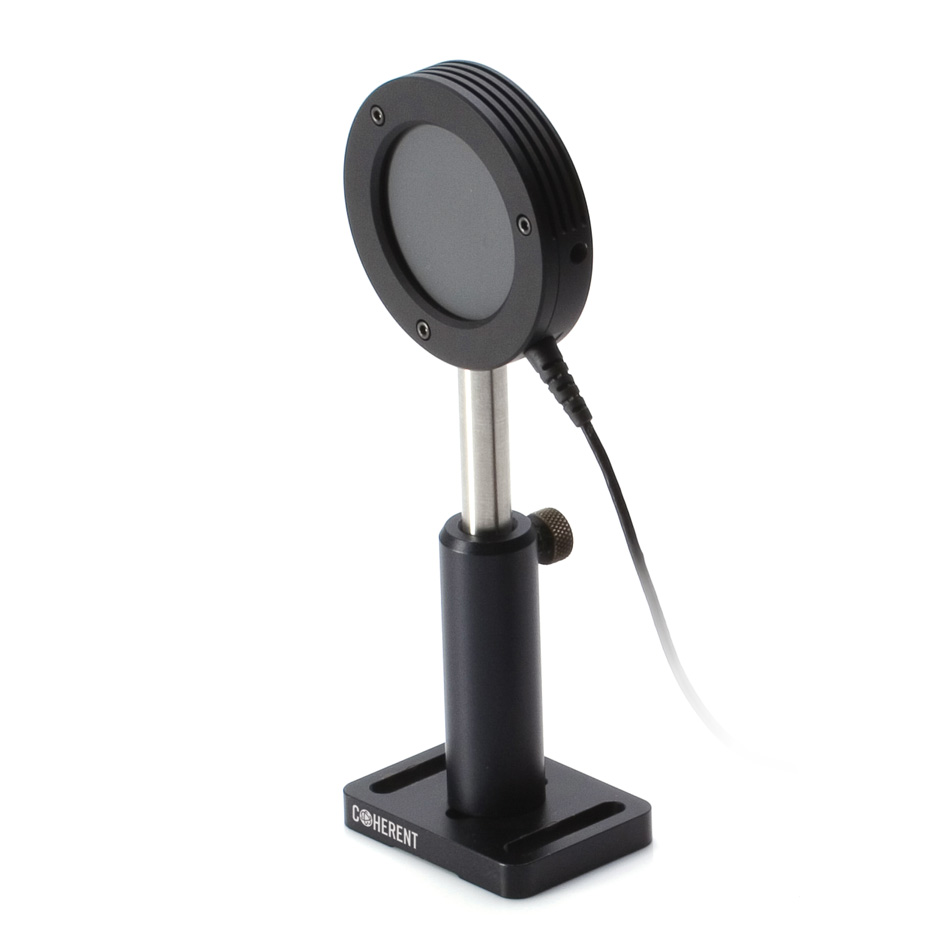

EnergyMax ➝

Pyroelectric sensors that offer large active area, wide dynamic range, broad wavelength coverage and high damage threshold.



0.19 to 12 µm

35

15 J

10 kHz

DB25
RS-232*
USB*

Quantum EnergyMax ➝

Silicon and germanium semiconductor sensors can measure very low light levels with a high response speed.



Si: 250 nm to 1100 nm

7

775 nJ

10 kHz

DB25
RS-232*

Ge: 800 to 1700 nm

7

600 nJ

10 kHz

DB25
USB*

* Doesn't require a separate meter.  All meter electronics are integrated within the sensor cable.
