硒化锌 (ZnSe)
使用领先材料制造商生产的 ZnSe 制造高质量透镜、镜片、输出耦合器、分束器和其他光学器件。
ZnSe 具备适合成像用途的高均匀性和同质性,以及适合高功率激光应用的低吸收和散射;其可见光传输能力简化了光学系统对准。ZnSe 还具有非吸湿特性和化学稳定性。
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
硒化锌 (ZnSe) 特性

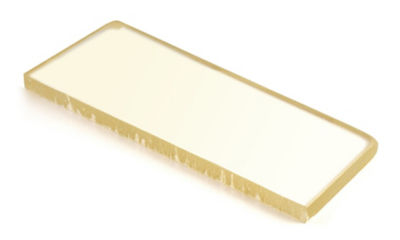

Coherent 通常供应最大 300 mm 的 ZnSe 基板,并可提供板材、钻芯坯料、有边坯料、生成的曲面透镜毛坯等。
ZnSe 材料特性(20°C 时) |
|
物理特性 |
|
结构 |
立方闪锌矿 |
密度 |
5.27 g/cm³ |
晶粒大小 |
< 100 μm |
内含物 |
无 > 0.05 mm 内含物 |
电密度 |
> 1012 ohm-cm |
光学特性 |
|
体吸收系数 @ 10.6 μm |
<0.0005 cm-1 |
热光系数 (dn/dT) @ 10.6 μm |
6.1 x 10-5/°C |
折射率不均匀性 @ 0.6328 μm |
< 3 x 10-6 |
热特性 |
|
20°C 时的导热率 |
0.18 W/cm/°C |
比热 |
0.356 J/g/°C |
20°C 时的线性膨胀系数 |
7.57 x 10-6/°C |
机械性能 |
|
杨氏模量 |
67.2 GPa (9.75 x 106 psi) |
断裂模量 |
55.1 MPa (8,000 psi) |
努氏硬度 |
105-120 kg/mm² |
密度 |
5.27 g/cm³ |
泊松比 |
0.28 |
断裂韧性 |
0.5 x 106 N/m1.5 |
