eM100 Micromachining/Marking Superhard Materials

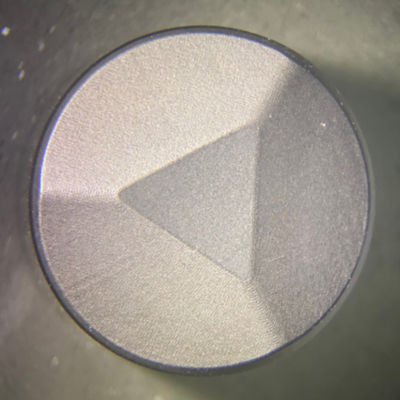

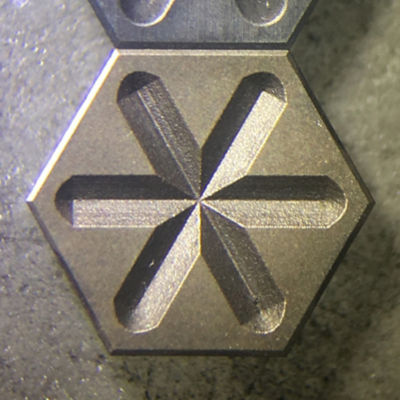

Deliver precision ablation of fine surface features in superhard materials like tungsten carbide, advanced ceramics, silicon carbide, boron nitrides, and more.

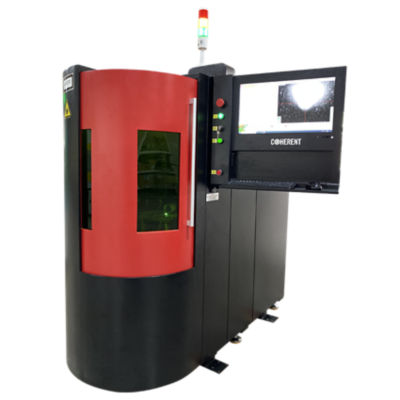

The eM100 is a micromachining system for rapid and repeatable shaping of fine details in superhard materials. With its powerful nanosecond fiber laser source and precise galvo scanning, the eM100 can also cut thinner materials and perform surface marking.
By providing your information and clicking ‘Subscribe’, you opt-in to receiving periodic email marketing communications from Coherent Corp. and understand that your personal data will be processed in accordance with our Privacy Policy and that our Terms apply. You may opt-out of marketing emails sent by us at any time by clicking the unsubscribe link in any marketing email you receive.
EM100 – Key Product Features and Options
Set cut priority, direction, speed, and multiple passes for each entity/segment from dxf or geode files with our ePath software. Quickly preview the cutting patterns.
Product Specifications
Model Options |
Laser Details |
Maximum (XY) Working Area (mm) |
Fixture Area (mm) |
Optional Turning Table (degrees/rpm) |
Part Loading |
Max XY Scan Speed (mm/min) |
3 axis |
100 W infrared (1060 nm) nanosecond fiber laser |
300 x 300 |
240 x 300 |
NA |
Manual, custom automated |
3000 |
4 axis |
100 x 100 |
60/60 |
||||
5 axis |
