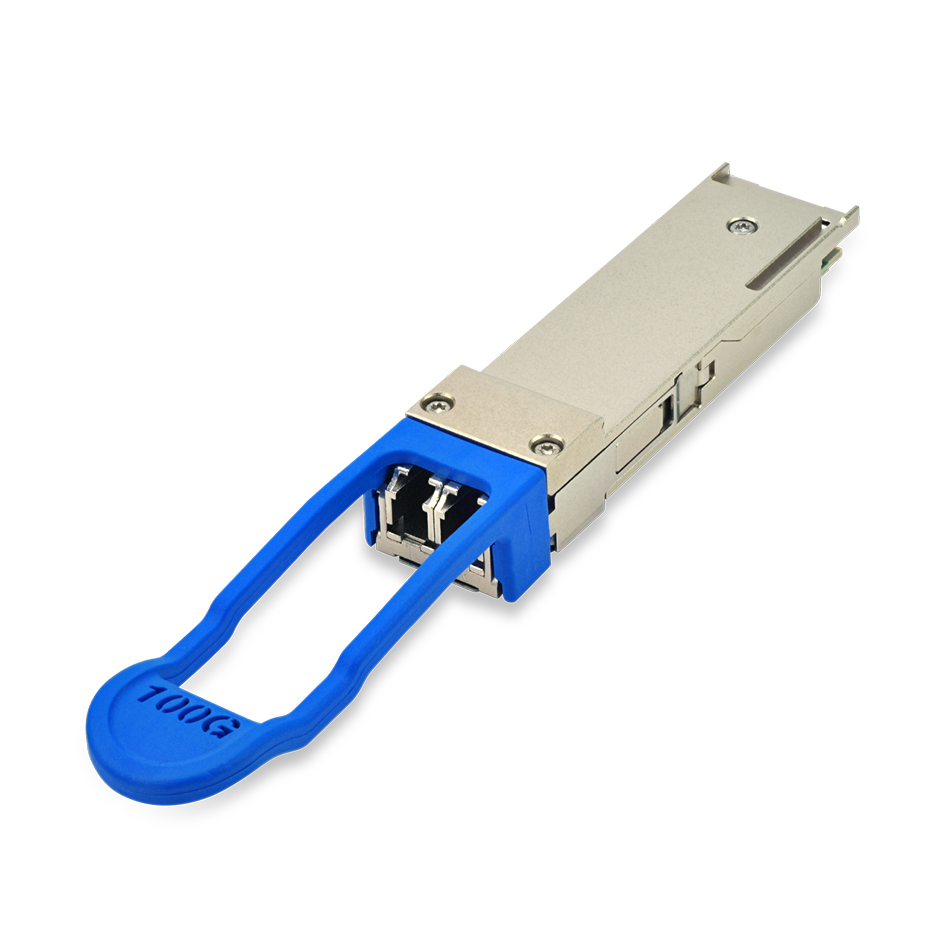

100GBASE-LR4 10km QSFP28 Optical Transceiver
FTLC1156RDPL QSFP28 transceiver modules arecompliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4. Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Coherent Application Notes AN-2152 and AN-2153. The optical transceiver is RoHS compliant as described in Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLC1156RDPL |
|---|---|
| Operating Distance | 10 km |
| Data Transfer Rate | 100G |
| Form Factor | QSFP28 |
| Receiver | PIN |
| High End Case Temperature (ºC) | 70 °C |
| Transmitter | DFB Laser |
| Connector | LC |
| Media Type | Single SMF |
| Data Rate | 103.1 Gb/s |
| Protocol | Gigabit Ethernet |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 1310nm Band |
