4x100G-LR QSFP-DD Optical Transceiver Module

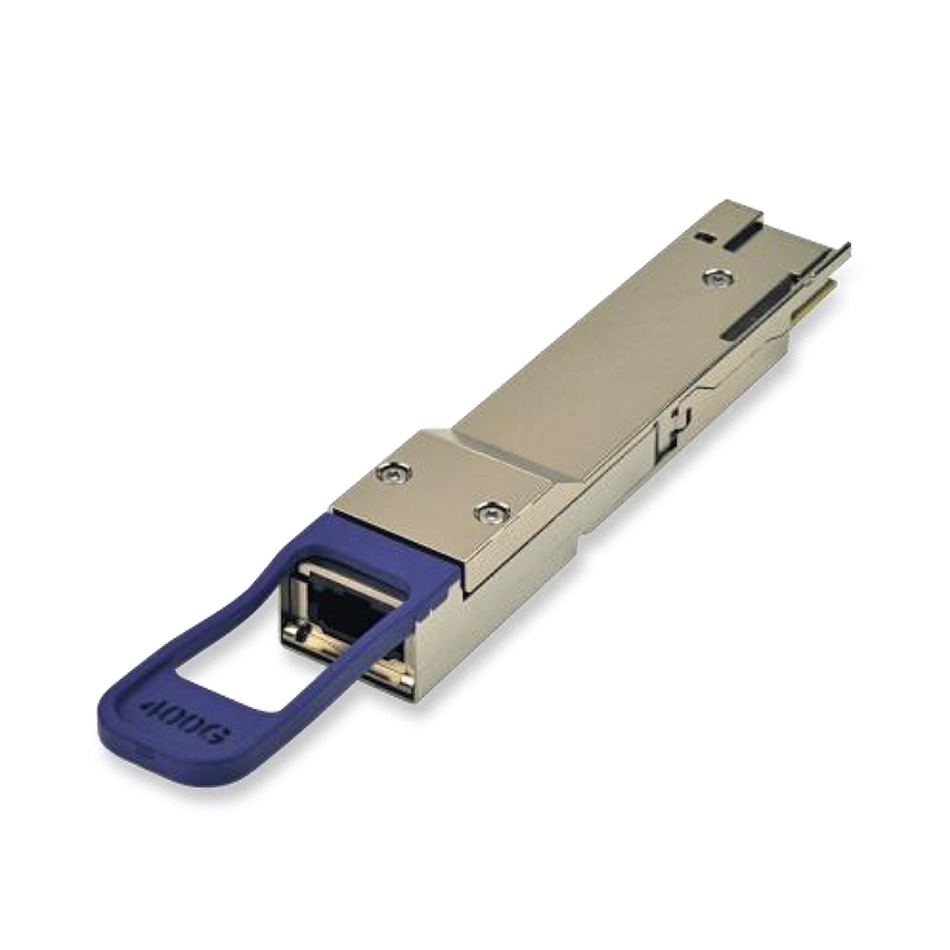

Product image of 4x100G-LR QSFP-DD Optical Transceiver Module

These transceivers are compliant with the QSFP-DD MSA, and portions of IEEE P802.3bs. Digital diagnostic functions are available via the I2C interface specified in Common Management Interface Specification Rev. 4.0 and Finisar Application Note AN-2189. The transceiver is RoHS-6 compliant per Directive 2011/65/EU4 and Finisar Application Note AN-2038. For details of our compliance standards, click here.

Download the Datasheet

Parameter FTCD4543E3PCM
Operating Distance 10 km
Data Transfer Rate 400G
Form Factor QSFP-DD
Wavelength (by band type) 1310 Band
Receiver PIN
Low End Case Temperature (ºC) 0 ˚C
High End Case Temperature (ºC) 70 ˚C
Transmitter EML
Connector MPO12
Media Type Single SMF
Data Rate 425 Gb/s
Protocol Gigabit Ethernet
Voltage Supply (V) 3.3 V
Diagnostics Digital
Wavelength (nm) 1310 nm
