DWDM, full band tunable (C-Band), Limiting APD
Amplified SONET/SDH and 10GbE, 11.3 Gb/s multi-rate transceiver, single mode, SFP+ footprint, 3.3V, LC connector, -40/85°C operation, 80km, High Performance, CDR

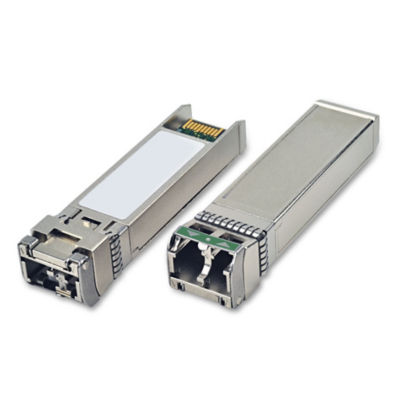

Finisar® FTLX6882MTC transceivers are Enhanced Small Form Factor Pluggable Tunable SFP+ transceivers designed for use in 10-Gigabit multi-rate links up to 80km of G.652 single mode fiber. They are compliant with SFF-8418 , SFF-8419 (with Power Class 4 >2W), SFF-8432 , SFF-8690 , and G.698.1 DS100S1-2Dz(C), and support SONET OC-192, SDH STM-64, 10G Ethernet ZR and 10G Fibre Channel over 80km fiber.
Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The optical transceiver is RoHS compliant as described in Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLX6882MTC |
|---|---|
| Description | DWDM, full band tunable (C-Band 100GHz), Limiting APD, 10.3 Gb/s multi-rate transceiver, single mode, SFP+ footprint, 3.3V, LC connector, -40/85°C operation, 80km, no CDR |
| Operating Distance | 80 km |
| Data Transfer Rate | 10G |
| Form Factor | SFP+ |
| Wavelength (by band type) | C-Band DWDM Tunable |
| Transmitter Optical Output Power (dBm) | -1dBm |
| Receiver | APD |
| Management Interface | SFF-8472 |
| Low End Case Temperature (ºC) | -40 °C |
| High End Case Temperature (ºC) | 85 °C |
| Transmitter | Monolithic MZM Tunable TOSA |
| Connector | Duplex LC |
| Media Type | SMF |
| Data Rate | 11.3 Gb/s |
| Diagnostics | Digital |
