DWDM, full band tunable (C-Band 100GHz), Limiting PIN

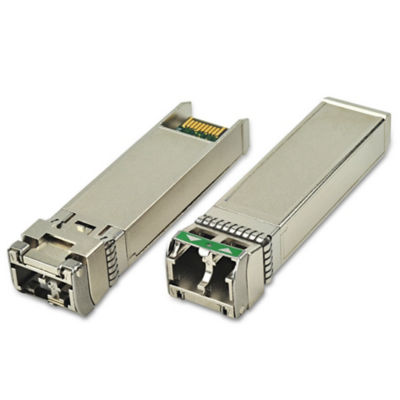

10.3 Gb/s multi-rate transceiver, single mode, SFP+ footprint, 3.3V, LC connector, -5/70°C operation, 40km, no CDR.
FTLX6673MCC transceivers are compliant with SFF-8431, SFF-8432 , SFF- 8690,), and support SONET OC-192, SDH STM-64, and 10G Fibre Channel over 40km fiber. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The optical transceiver is RoHS compliant as described in Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLX6673MCC |
|---|---|
| Description | DWDM, full band tunable (C-Band 100GHz), Limiting PIN, 10.3 Gb/s multi-rate transceiver, single mode, SFP+ footprint, 3.3V, LC connector, -5/70°C operation, 40km, no CDR |
| Operating Distance | 40 km |
| Data Transfer Rate | 10G |
| Form Factor | SFP+ |
| Wavelength (by band type) | C-Band DWDM Tunable |
| Transmitter Optical Output Power (dBm) | -1dBm |
| Receiver | PIN |
| Management Interface | SFF-8472 |
| High End Case Temperature (ºC) | 70 °C |
| Transmitter | Tunable + InP MZM |
| Connector | LC |
| Media Type | Duplex SMF |
| Data Rate | 11.3 Gb/s |
| Diagnostics | Digital |
