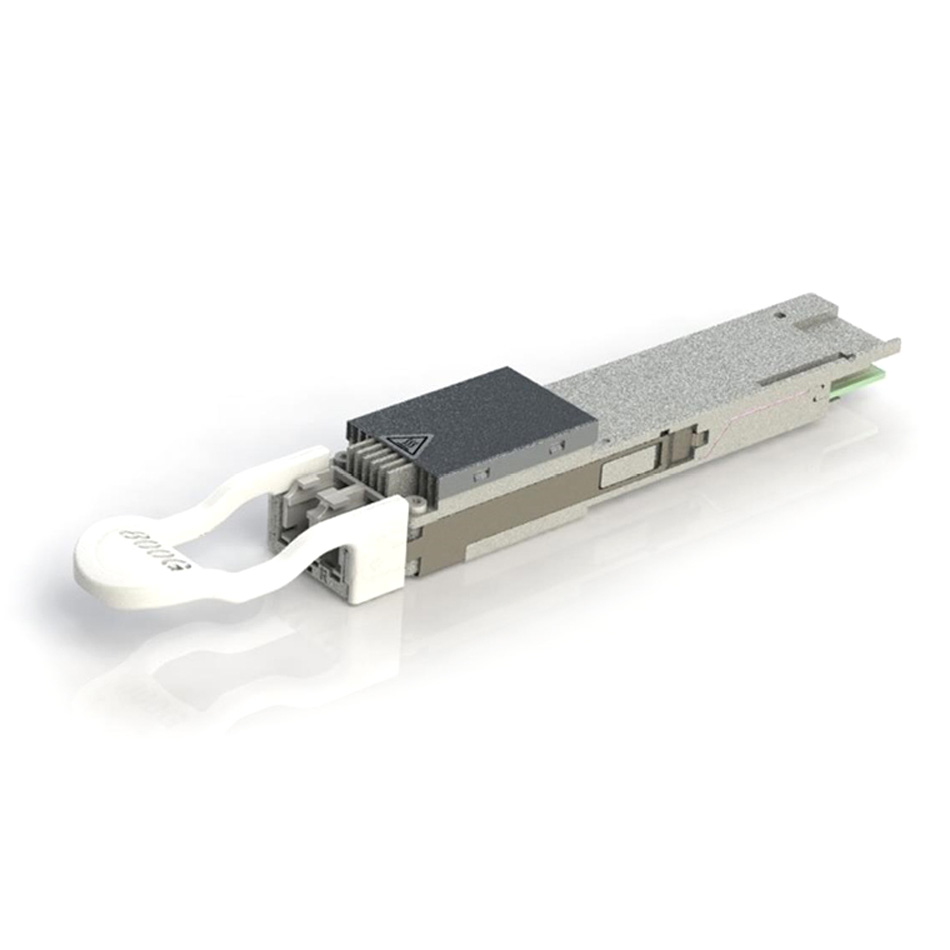

800G/600G/400G QSFP-DD Digital Coherent Optics Transceiver
800G Telecom ZR+, High Tx output power (0dBm), C-band tunable, 0°C to 70°C, LC receptacle.
800G Digital Coherent Optics (DCO) transceivers are available to support various Dense Wavelength Division Multiplexing (DWDM) applications including Data Center Interconnect (DCI) up to 120km fiber distance and metro/regional networks greater than 500km fiber distance. The OpenZR+ versions support multi-rate coherent transmission with line modes of 800G, 600G, and 400G.
High transmitter optical output power enable the transceivers to be compatible with deployed and emerging ROADM line systems.
The 800G Digital Coherent Optics (DCO) family of transceivers are available in two small form-factors, QSFP-DD and OSFP, which enable them to plug directly into routers/switches for IP-over-DWDM.
Datasheet
| Parameter | FTCE3326E1PCL |
|---|---|
| Description | 800G QSFP-DD Digital Coherent Optics Transceiver, OIF 800ZR, High Tx output power (0dBm), C-band tunable, 0°C to 70°C, LC receptacle |
| Operating Distance | 120 km |
| Data Transfer Rate | 800G |
| Form Factor | QSFP-DD |
| Wavelength (by band type) | C-Band 5THz DWDM Tunable |
| Transmitter Optical Output Power (dBm) | 0dBm |
| Receiver | Coherent |
| Management Interface | CMIS |
| Low End Case Temperature (ºC) | 0 °C |
| High End Case Temperature (ºC) | 70°C |
| Transmitter | Tunable DP-16QAM/8QAM/QPSK |
| Connector | LC |
| Media Type | Duplex SMF |
| Data Rate | 800 Gb/s |
| Diagnostics | Digital |
