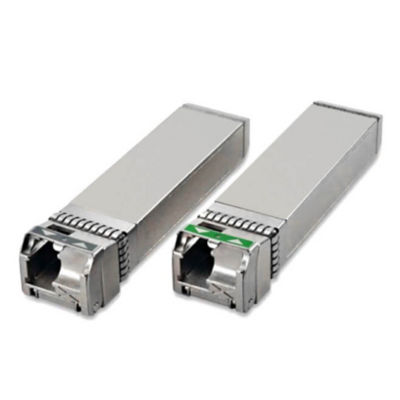

10Gb/s Bidirectional 30km SFP+ Optical Transceiver
FTLX2672D327/FTLX2672D333 10Gb/s Enhanced Small Form Factor Pluggable SFP+ transceivers are compliant with SFF-84311and IEEE 802.3ae 10GBASE-LR/LW3, and 10G Fibre Channel 1200-SM-LL-L4. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-84725. TheFTLX2672D327/FTLX2672D333 is a limiting module, i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer's recommended settings for interoperating the host-board EDC PHY with a limiting receiver SFP+ module. The optical transceiver is compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLX2672D3XX |
|---|---|
| Operating Distance | 30 km |
| Data Transfer Rate | ≤10G |
| Form Factor | SFP+ |
| Wavelength (by band type) | Bidi 1271/1331nm |
| Receiver | PIN |
| Low End Case Temperature (ºC) | -40 °C |
| High End Case Temperature (ºC) | 85 °C |
| Transmitter | DFB Laser |
| Connector | LC |
| Media Type | Single SMF |
| Data Rate | 11.3 Gb/s |
| Protocol | CPRI Gigabit Ethernet Fibre Channel FTTx (PON/BiDi) |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
