Datasheet
Networking

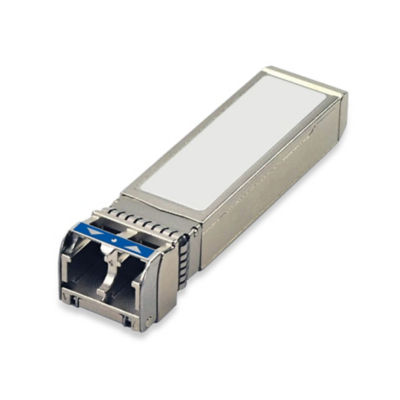

32G Fibre Channel (32GFC) Short-Wavelength Extended Temperature SFP28 Optical Transceiver
FTLF8532P4BNV SFP+ transceivers are compliant with FC-PI-6a, SFF-8472 Rev 12.2c, and compatible with SFF-8432b and applicable portions of SFF_x005F_xFFFE_8431 Rev. 4.1d. The transceiver is RoHS compliant and per Directive 2011/65/EUe . See Finisar Application Note AN-2038 for more details. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLF8532P4BNV |
|---|---|
| Operating Distance | 100 m |
| Data Transfer Rate | 25G |
| Form Factor | SFP28 |
| Receiver | PIN |
| High End Case Temperature (ºC) | 85 °C |
| Transmitter | VCSEL |
| Connector | LC |
| Media Type | Duplex MMF |
| Data Rate | 28.05 Gb/s |
| Protocol | Fibre Channel |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 850nm Band |
