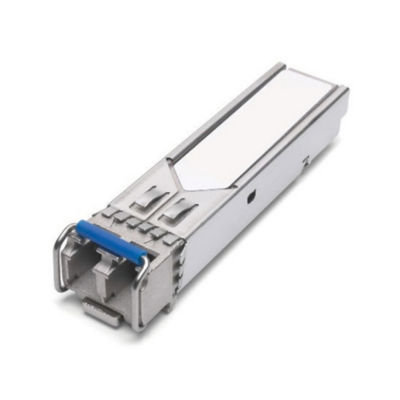

OC-12 SR-1/STM I-4 or OC-12 IR-1/STM S-4.1 SFP Optical Transceiver
FTLF1322P1xTR Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1. They comply with SONET and SDH standards2 at OC-12 IR-1/STM S-4.1 and OC-12 SR/ STM I-4. In addition, they comply with SONET and SDH standards at OC-3 IR-1 /STM S-1.1 and OC-3 SR/STM I-1, as detailed in Finisar Application Note AN-2042. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLF1322P1XTR |
|---|---|
| Operating Distance | 15 km |
| Data Transfer Rate | ≤10G |
| Form Factor | SFP |
| Receiver | PIN |
| Low End Case Temperature (ºC) | -40 °C |
| High End Case Temperature (ºC) | 85 °C |
| Transmitter | Fabry-Perot Laser |
| Connector | LC |
| Media Type | Duplex SMF |
| Data Rate | 622 Gb/s |
| Protocol | CPRI SONET/SD/SDH |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 1310nm Band |
