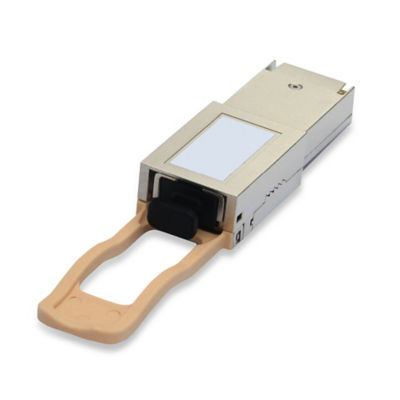

12×11.3G (120G) 100m Gen3 CXP Optical Transceiver
FTLD10CE3C second-generation CXP transceiver modules are compliant with the IBTA CXP Specification1, IEEE 802.3ba 100GBASE-SR10 and CPPI electrical interfaces. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC, and Finisar Application Note AN-2038. They support Tx/Rx optical power monitoring functionality. For applications up to 14 Gb/s per channel please contact us directly. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLD10CE3C |
|---|---|
| Operating Distance | 100 m |
| Data Transfer Rate | 100G |
| Form Factor | CXP |
| Receiver | PIN |
| High End Case Temperature (ºC) | 70 °C |
| Transmitter | VCSEL |
| Connector | MPO |
| Media Type | Parallel MMF |
| Data Rate | 150 Gb/s |
| Protocol | Gigabit Ethernet Fibre Channel InfiniBand PCIe |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 850nm Band |
