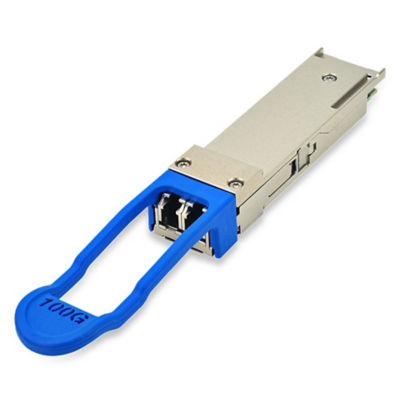

100G LR4 10km Multi-Rate QSFP28 Optical Transceiver
FTLC1156SDPL QSFP28 transceiver modules are compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm CAUI-4 and OTU4 4I1-9D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39 (G.sup39). Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Coherent Application Notes AN-2152 and AN-2153. The optical transceiver is RoHS compliant as described in Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLC1156SDPL |
|---|---|
| Operating Distance | 10 km |
| Data Transfer Rate | 100G |
| Form Factor | QSFP28 |
| Receiver | PIN |
| High End Case Temperature (ºC) | 70 °C |
| Transmitter | VCSEL |
| Connector | LC |
| Media Type | Duplex SMF |
| Data Rate | 112 Gb/s |
| Protocol | Gigabit Ethernet |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 1310nm Band |
