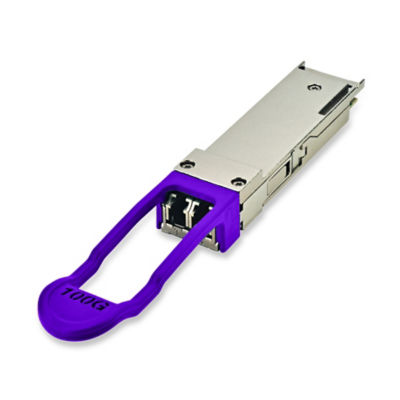

100G eCWDM4 10km Extended Temperature QSFP28 Optical Transceiver
FTLC1155RGPLC QSFP28 transceiver modules are compliant with the QSFP28 MSA, CWDM4 MSA, 4WDM MSA, and portions of IEEE P802.3bm CAUI- 44. Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Notes AN-2153< and AN-2153. The optical transceiver is compliant per the RoHS-6 Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLC1155RGPLC |
|---|---|
| Operating Distance | 10 km |
| Data Transfer Rate | 100G |
| Form Factor | QSFP28 |
| Receiver | PIN |
| Low End Case Temperature (ºC) | -20 °C |
| High End Case Temperature (ºC) | 85 °C |
| Transmitter | 4x CWDM |
| Connector | LC |
| Media Type | Duplex SMF |
| Data Rate | 103.1 Gb/s |
| Protocol | Gigabit Ethernet |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 1310nm Band |
