Datasheet
Networking
100G Ethernet Compliant

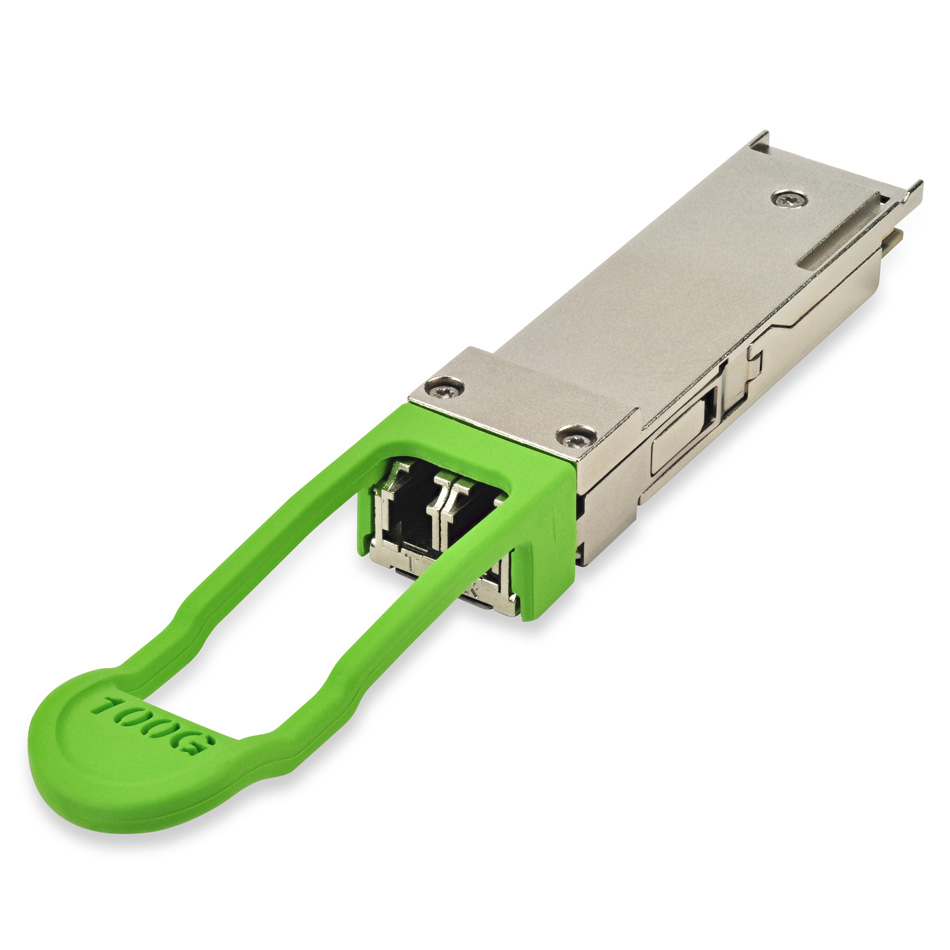

FTLC1155RGPL6 QSFP28 are compliant with the QSFP28 MSA and represent a Lite version of the CWDM4 MSA (500m reach, 15 °C to +60 °C limited temperature), and portions of IEEE P802.3bm. Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Application Notes AN-21535 and AN-21546. The optical transceiver is RoHS compliant as described in Application Note AN-2038. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLC1155RGPL6 |
|---|---|
| Operating Distance | 500 m |
| Data Transfer Rate | 100G |
| Form Factor | QSFP28 |
| Receiver | PIN |
| Low End Case Temperature (ºC) | 15 °C |
| High End Case Temperature (ºC) | 60 °C |
| Transmitter | CWDM DFB Laser |
| Connector | LC |
| Media Type | Duplex SMF |
| Data Rate | 103.1 Gb/s |
| Protocol | Gigabit Ethernet |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| Wavelength (nm) | 1310nm Band |
