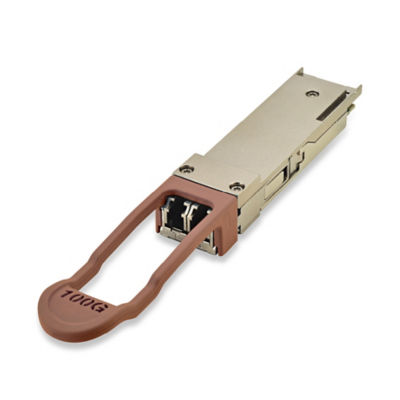

100G 20 km eLR4 QSFP28 Optical Transceiver Module (WDM-20)
FTLC1154RDPLC QSFP28 transceiver modules are compliant with the QSFP28 MSA<, IEEE 802.3ba 100GBASE-LR4, 4WDM MSA, portions of CWDM4 MSA, and IEEE 802.3bm CAUI-4. Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Notes AN-21524and AN-2153. The optical transceiver is compliant per the RoHS-6 Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details. For details of our compliance standards, click here.
Datasheet
| Parameter | FTLC1154RDPLC |
|---|---|
| Operating Distance | 20 km |
| Data Rate | 103.1 Gb/s |
| Data Transfer Rate | 100G |
| Protocol | Gigabit Ethernet |
| Connector | LC |
| Media Type | Duplex SMF |
| Form Factor | QSFP28 |
| Low End Case Temperature (ºC) | -20 °C |
| Voltage Supply (V) | 3.3 V |
| Diagnostics | Digital |
| High End Case Temperature (ºC) | 85 °C |
| Wavelength (nm) | 1310nm Band |
| Transmitter | 4x LWDM DFB Laser |
| Receiver | PIN |
